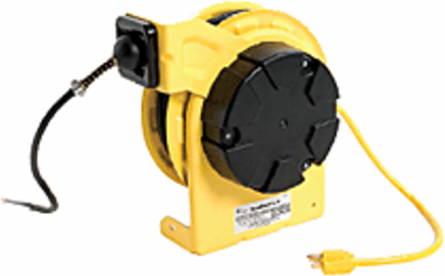

Woodhead 980A-83 Standard Duty Cord Reel, 16/3 SJTOW, 50ft Length, 13W Fluorescent Lamp, Steel/Polycarbonate
- MPN: 980A-83
- PPN: WOD-980A-83
CAD
$1777.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Duty Cord Reel, 16/3 SJTOW, 50ft Length, 13W Fluorescent Lamp, Steel/Polycarbonate
Documentation & Downloads
Specifications
Physical
| Material - Housing | Steel/Polycarbonate |
|---|---|
| Mounting Style | Rigid |
| Material - Coating | Powder Coating |
| Wire Size AWG | 16 |
| Retraction Weight | 1.4kg (3.0 lb) |
| Cord Length | 15.24m (50.0') |
| Cable Movement | Ratchet Lock |
|---|---|
| Primary Cord/Cable Entry | N/A |
| Drum Lock | Ratchet |
| Packaging Type | Carton |
| Guide Arm | 2 - Position |
| Number of Conductors | 3 |
Electrical
| Bulb Included | Yes |
|---|---|
| GFCI | No |
| Lamp Wattage - Maximum | 13W |
| On/Off Switch | Yes |
| Voltage - Maximum | 120V |
|---|---|
| Lamp Type | Fluorescent |
| Cord Type | 16/3 SJTOW |
| Current - Maximum per Contact | 8.0A |
Material Info
| Engineering Number | 980A-83 |
|---|
General
| UPC | 78678833611 |
|---|---|
| Height | 0.36m (14.25") |
| Type | Cord Reel |
| Product Name | Super-Safeway™ |
| Product Literature Order No | 987650-8061 |
| Enclosure Rating | NEMA 1 |
| Duty | Standard |
| Width | 196.85mm (7.750") |
|---|---|
| Product Family | Electric Reels |
| NEMA Configuration | NEMA 5-15 |
| Overview | Electric Reels |
| Depth | 0.30m (11.75") |
| Series | 130091 |
| Cable Length | 0.457m (1.50') |
