Woodhead

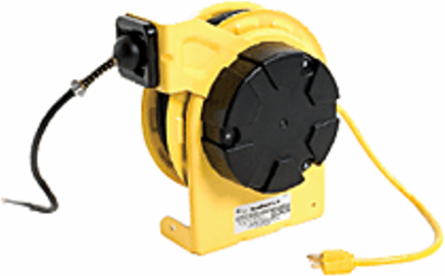

Woodhead 990-1610S Woodhead Standard Duty Reel, 14/3 SJTOW Cord, 13.72m (45.0') Cord Length with 30W Maximum Low Volt Incandescent Spot Light

Woodhead Standard Duty Reel, 14/3 SJTOW Cord, 13.72m (45.0') Cord Length with 30W Maximum Low Volt Incandescent Spot Light
  • MPN: 990-1610S
  • PPN: WOD-990-1610S

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2959.49/ EA

Description

Woodhead® Standard Duty Reel, 14/3 SJTOW Cord, 13.72m (45.0') Cord Length with 30W Maximum Low Volt Incandescent Spot Light

Specifications

General

Overview
Electric Reels
Height
0.36m (14.25")
Product Literature Order No
987650-8061
Enclosure Rating
NEMA 1
NEMA Configuration
NEMA 5-15
Product Family
Electric Reels
Duty
Standard
TypeCord Reel
Depth0.30m (11.75")
Width196.85mm (7.750")
Cable Length0.457m (1.50')
Series130091
UPC78678833623
Product NameSuper-Safeway™

Electrical

Cord Type
14/3 SJTOW
Transformer Type
Reel Mounted
GFCI
No
Lamp Type
Incandescent
Bulb Included
Yes
Lamp Wattage - Maximum30W
On/Off SwitchYes
Voltage - Maximum120V
Current - Maximum per Contact11.0A

Physical

Material - Coating
Powder Coating
Number of Conductors
3
Primary Cord/Cable Entry
N/A
Packaging Type
Carton
Material - Housing
Steel/Polycarbonate
Drum Lock
Ratchet
Mounting StyleRigid
Cord Length13.72m (45.0')
Guide Arm2 - Position
Cable MovementRatchet Lock
Retraction Weight1.4kg (3.0 lb)
Wire Size AWG14

Material Info

Engineering Number
990-1610S
