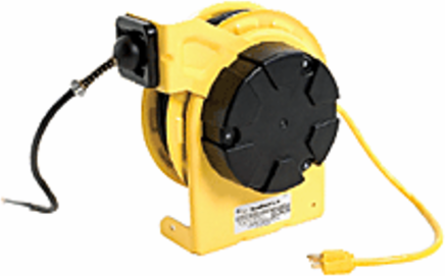

Woodhead 990-83 Standard Duty Cord Reel, 14/3 SJTOW, 45.0' Cord Length, 13W Fluorescent Lamp
- MPN: 990-83
- PPN: WOD-990-83
CAD
$1374.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Duty Cord Reel, 14/3 SJTOW, 45.0' Cord Length, 13W Fluorescent Lamp
Documentation & Downloads
Specifications
Material Info
| Engineering Number | 990-83 |
|---|
Agency Certification
| CSA | LR29921 |
|---|
| UL | E22769 |
|---|
Electrical
| Lamp Type | Fluorescent |
|---|---|
| GFCI | No |
| Lamp Wattage - Maximum | 13W |
| Bulb Included | Yes |
| On/Off Switch | Yes |
|---|---|
| Current - Maximum per Contact | 11.0A |
| Cord Type | 14/3 SJTOW |
| Voltage - Maximum | 120V |
Physical
| Mounting Style | Rigid |
|---|---|
| Packaging Type | Carton |
| Number of Conductors | 3 |
| Guide Arm | 2 - Position |
| Retraction Weight | 1.4kg (3.0 lb) |
| Wire Size AWG | 14 |
| Cord Length | 13.72m (45.0') |
|---|---|
| Material - Housing | Steel/Polycarbonate |
| Drum Lock | Ratchet |
| Cable Movement | Ratchet Lock |
| Material - Coating | Powder Coating |
| Primary Cord/Cable Entry | N/A |
General
| Type | Cord Reel |
|---|---|
| Height | 0.36m (14.25") |
| Overview | Electric Reels |
| Product Name | Super-Safeway™ |
| NEMA Configuration | NEMA 5-15 |
| UPC | 78678833618 |
| Duty | Standard |
| Series | 130091 |
|---|---|
| Depth | 0.30m (11.75") |
| Cable Length | 0.457m (1.50') |
| Enclosure Rating | NEMA 1 |
| Product Literature Order No | 987650-8061 |
| Width | 196.85mm (7.750") |
| Product Family | Electric Reels |
