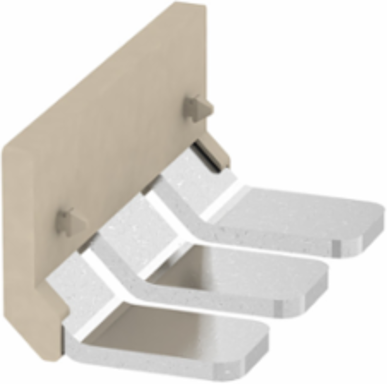

Weidmuller 1802800000 WQB 240/3
- MPN: 1802800000
- PPN: WDM-1802800000
CAD
$53.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 3
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 99.3 mm
- Height
- 49.3 mm
- Depth
- 43.5 mm
- Net weight
- 238.2 g
Width (inches)3.909 inch
Height (inches)1.941 inch
Depth (inches)1.713 inch
Dimensions
- Pitch in mm (P)
- 5.1 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- when screwed in
Installation adviceFeed-through (bushing)
Material Data
- Material
- tinned copper
ColourSilver grey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- For the terminals
Cross-Connector
- Number of cross-connected terminals
- 3
- Type
- Cross-connector
Rated current, multi-pole320 A
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
