Weidmuller 1495240000 KWN-M6/-1,5 90
- MPN: 1495240000
- PPN: WDM-1495240000
CAD
$1.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

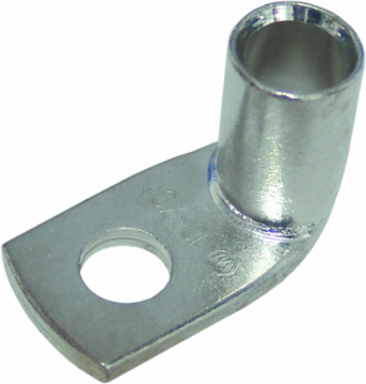

cable lug, terminal end,1 mm² - 1.5 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section, max.
- 1.5 mm²

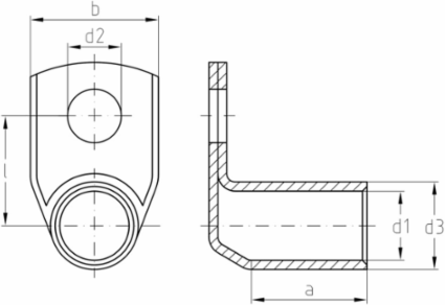

- Connection length (I)
- 12 mm
- Hole
- M 6
- Inside diameter of shaft (d1)
- 1.9 mm
- Outside diameter of shaft (d3)
- 3.9 mm
Conductor cross-section, min.1 mm²
Flange width (b)11 mm
Inside diameter of flange (d2)6.4 mm
Insulationnot available
Shaft length (a)5 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Weight
- 0.15 g
Net weight0.002 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series 90°
