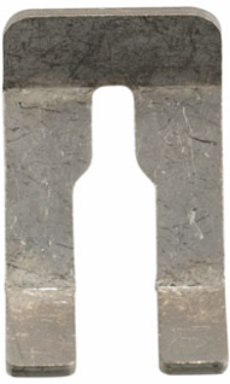

Weidmuller 1079600000 WQB PEN 16N
- MPN: 1079600000
- PPN: WDM-1079600000
CAD
$15.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 2
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 17.6 mm
- Height
- 21.09 mm
- Depth
- 1.2 mm
- Net weight
- 3.6 g
Width (inches)0.693 inch
Height (inches)0.83 inch
Depth (inches)0.047 inch
Dimensions
- Pitch in mm (P)
- 12 mm
Additional Technical Data
- Type of fixing
- Plugged
Material Data
- Material
- tinned copper
ColourSilver grey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
System Specifications
- Version
- For the terminals
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
