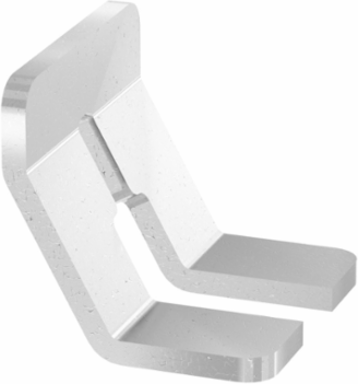

Weidmuller 1060100000 WQB-PEN 35
- MPN: 1060100000
- PPN: WDM-1060100000
CAD
$19.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, Cross-connector, For the terminals, Number of poles: 2
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 24.6 mm
- Height
- 22 mm
- Depth
- 2 mm
- Net weight
- 12 g
Width (inches)0.969 inch
Height (inches)0.866 inch
Depth (inches)0.079 inch
Dimensions
- Pitch in mm (P)
- 16 mm
Additional Technical Data
- Explosion-tested version
- No
- Type of fixing
- when screwed in
Installation adviceDirect mounting
Material Data
- Material
- tinned copper
ColourSilver grey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
System Specifications
- Version
- For the terminals
Cross-Connector
- Number of cross-connected terminals
- 2
- Type
- Cross-connector
Rated current, multi-pole135 A
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
