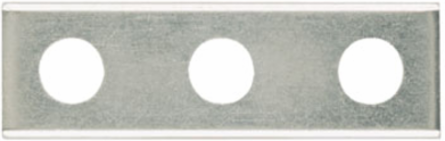

Weidmuller 1812740000 WQL 3 WF5
- MPN: 1812740000
- PPN: WDM-1812740000
CAD
$4.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bolt-type screw terminals, Cross-connector, Number of poles: 3
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 12 mm
- Height
- 38 mm
- Depth
- 4 mm
- Net weight
- 13.08 g
Width (inches)0.472 inch
Height (inches)1.496 inch
Depth (inches)0.157 inch
Dimensions
- Pitch in mm (P)
- 13 mm
Additional Technical Data
- Installation advice
- Direct mounting
Type of fixingwhen screwed in
Material Data
- Material
- Copper - zinc
Colourgrey
Classifications
- ETIM 6.0
- EC000489
- eClass 9.0
- 27-14-11-40
- eClass 10.0
- 27-14-11-40
ETIM 7.0EC000489
eClass 9.127-14-11-40
UNSPSC30-21-18-01
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
Storage temperature, min.10 °C
Rating Data
- Rated current
- 76 A
