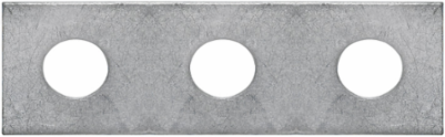

Weidmuller 1781000000 WQL 3 WF8
- MPN: 1781000000
- PPN: WDM-1781000000
CAD
$13.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bolt-type screw terminals, Cross-connector, Number of poles: 3
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20 mm |
|---|---|
| Height | 63.6 mm |
| Depth | 4 mm |
| Net weight | 38.81 g |
| Width (inches) | 0.787 inch |
|---|---|
| Height (inches) | 2.504 inch |
| Depth (inches) | 0.157 inch |
Dimensions
| Pitch in mm (P) | 22 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Copper - zinc |
|---|
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Rating Data
| Rated current | 150 A |
|---|
