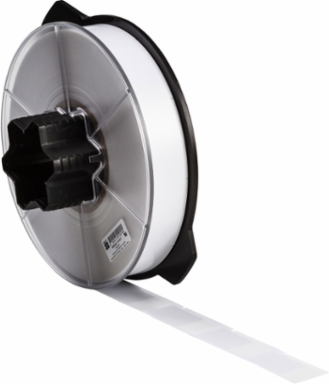

Brady WRAP-10-417 Wraptor™ Self-Laminating Labels Vinyl 2.25 in H x 1 in W Roll of 2500 Labels
- MPN: WRAP-10-417
- UPC: 754473615444
- PPN: BRD-WRAP-10-417
- UNSPSC: 55121612
CAD
$514.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- WRAPTOR™ Wire Marking System
- Primary Noun, Basic Function
- Label
- Printable Sides
- Single-Side Printable
- Printer Compatibility
- Wraptor™ A6500 Wrap Printer Applicator
- Quantity per Roll
- 2500
- Recommended Ribbon
- R4306
- Ribbon Series
- R4300
- Software Compatibility
- Brady Workstation, LabelMark
- Total Qty per Pack
- 2500 Piece(s) / Roll
- Trade Name
- Wraptor™
- Adhesive Type
- Acrylic
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 2.25 in H x 1 in W
- Dimensions 2
- 2.25 in H x 1 in W
- Height (mm/cm/m)
- 57.15 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.48 in
- Maximum Wire Gauge
- 8 gauge
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.10 mm
- Printable Area Dimensions
- 0.75 in H x 1 in W
- Printable Area Height (in/ft/yd)
- 0.75 in
- Printable Area Width (in/ft/yd)
- 1 in
- Sign Size-General
- 2.25 in x 1 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat (mm)
- 60.30 mm
- Width (in/ft/yd)
- 1 in
- Wire Gauge
- 1-8
Brand NameBrady®
Compatible Surface TypesCurved
DiagramIcon 6 (D solid)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)Wraptor A6500
Quantity per Row1
Recommended Ribbon SeriesR4300
ShapeRectangle
Suggested Ribbon SeriesR4300
Total Quantity2500
Adhesive (Y/N)Yes
Brady Material NumberB-417
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-417
Dimensions (Metric)25.40 mm W x 57.15 mm H
Height (in/ft/yd)2.25 in
Label/Tape Size (in/ft/yd)2.25 in H x 1 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)12.10 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.24 in
Minimum Wire Gauge1/0 gauge
Printable Area Dimensions (Metric)19.05 mm H x 25.40 mm W
Printable Area Height (mm/cm/m)19.05 mm
Printable Area Width (mm/cm/m)25.40 mm
Size - Width (mm)25.40 mm
Thickness (mm/cm/m)0.107 mm
Web Width (mm/cm/m)32.77 mm
Wire Diameter Range0.24 in to 0.48 in
Wire Gauge Range1/0 gauge to 8 gauge
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
