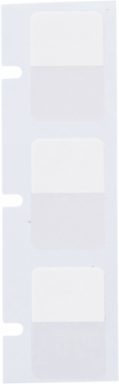

Brady WRAP-1-427 WRAPTOR Series Self-Laminating Vinyl Wire and Cable Labels, 0.75" H x 0.5" W, Clear/White, Roll of 6800 Labels,
- MPN: WRAP-1-427
- UPC: 662820613800
- PPN: BRD-WRAP-1-427
- UNSPSC: 55121612
CAD
$348.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.
Features
- Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
- Durable, permanent acrylic adhesive has outstanding water and oil resistance
- UL approved
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Finish
- Matte
- Label/Media Format

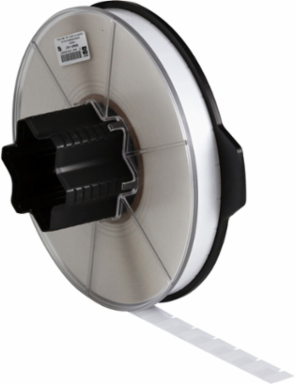

- Roll
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 6800
- Recommended Ribbon
- R4302
- Suggested Ribbon Series
- R4300
- Trade Name
- Wraptor™
- Brady Material Number
- B-427
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant; Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 0.75 in H x 0.5 in W
- Dimensions 2
- 0.75 in H x 0.5 in W
- Height (mm/cm/m)
- 19.1 mm
- Label/Tape Size (in/ft/yd)
- 0.75 in H x 0.5 in W
- Maximum Service Temperature °F
- 158 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.05 mm
- Minimum Service Temperature °C
- -70 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.1 in
- Minimum Wire Gauge
- 22 gauge
- Printable Area Dimensions (Metric)
- 9.5 mm H x 12.7 mm W
- Printable Area Height (mm/cm/m)
- 9.5 mm
- Printable Area Width (mm/cm/m)
- 12.7 mm
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 0.85 in
- Web Width (mm/cm/m)
- 63.5 mm
- Width (mm/cm/m)
- 12.7 mm
- Wire Gauge Range
- 22 gauge to 18 gauge
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized

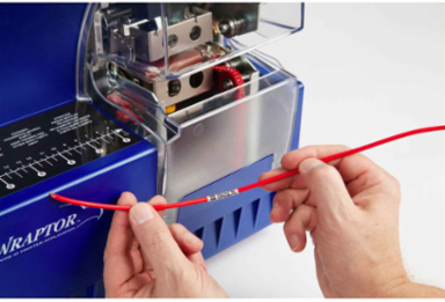

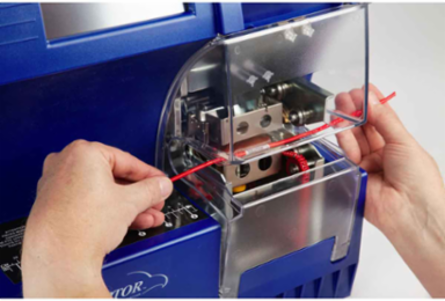

For Use with PrinterWRAPTOR™ Wire Marking System
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Quantity per Row1
ShapeRectangle
Total Quantity6800
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-427
Dimensions (Metric)19.1 mm H
Height (in/ft/yd)0.75 in
Horizontal Repeat0.6 in
Maximum Service Temperature °C70 °C
Maximum Wire Diameter (in/ft/yd)0.12 in
Maximum Wire Gauge18 gauge
Minimum Service Temperature °F-94 °F
Minimum Wire Diameter (mm/cm/m)2.54 mm
Printable Area Dimensions0.375 in H x 0.5 in W
Printable Area Height (in/ft/yd)0.375 in
Printable Area Width (in/ft/yd)0.5 in
Sign Size-General0.75 in x 0.5 in
Thickness (mm/cm/m)0.102 mm
Web Width (in/ft/yd)2.5 in
Width (in/ft/yd)0.5 in
Wire Diameter Range0.1 in to 0.12 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
