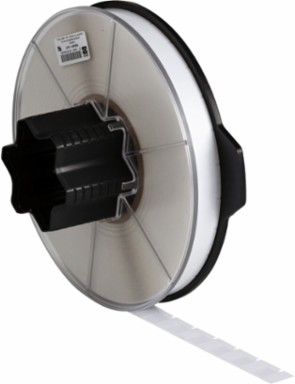

Brady WRAP-1-417 Wraptor™ Self-Laminating Labels Vinyl 0.75 in H x 0.5 in W Roll of 6800 Labels
- MPN: WRAP-1-417
- UPC: 754473615451
- PPN: BRD-WRAP-1-417
- UNSPSC: 55121612
CAD
$383.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Keep your wire identification secure with this self-laminating marker with extra-strong adhesive.
Features
- The extra-strong adhesive makes these markers ideal for small-gauge wires
- Features a white printable area and a clear tail that wraps around the marker
- Tail serves as an overlaminate to protect the print
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Data and Telecommunications Labeling; Electrical Labeling; Laboratory Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- WRAPTOR™ Wire Marking System
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- Wraptor A6500
- Quantity per Row
- 1
- Recommended Ribbon Series
- R4300
- Shape
- Rectangle
- Suggested Ribbon Series
- R4300
- Total Quantity
- 6800
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-417
- Material
- Self-laminating Vinyl
- Overlaminate Included
- Overlaminate Included
- SAP B-Number
- B-417
- Dimensions (Metric)
- 12.70 mm W x 19.05 mm H
- Height (in/ft/yd)
- 0.75 in
- Horizontal Repeat
- 0.6 in
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.12 in
- Maximum Wire Gauge
- 18 gauge
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 2.00 mm
- Printable Area Dimensions
- 0.375 in H x 0.5 in W
- Printable Area Height (in/ft/yd)
- 0.375 in
- Printable Area Width (in/ft/yd)
- 0.5 in
- Sign Size-General
- 0.75 in x 0.5 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 0.85 in
- Web Width (in/ft/yd)
- 2.5 in
- Width (in/ft/yd)
- 0.5 in
- Wire Gauge
- 22-18
Brand NameBrady®
Compatible Surface TypesCurved
DiagramIcon 6 (D solid)
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer CompatibilityWraptor™ A6500 Wrap Printer Applicator
Quantity per Roll6800
Recommended RibbonR4311
Ribbon SeriesR4300
Software CompatibilityBrady Workstation, LabelMark
Total Qty per Pack6800 Piece(s) / Roll
Trade NameWraptor™
Adhesive TypeAcrylic
Label PropertiesSelf Laminating Labels & Wraps
Material PropertiesSelf-laminating
Resistance PropertiesChemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
Dimensions0.75 in H x 0.5 in W
Dimensions 20.75 in H x 0.5 in W
Height (mm/cm/m)19.05 mm
Label/Tape Size (in/ft/yd)0.75 in H x 0.5 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)3.00 mm
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.1 in
Minimum Wire Gauge22 gauge
Printable Area Dimensions (Metric)9.53 mm H x 12.70 mm W
Printable Area Height (mm/cm/m)9.53 mm
Printable Area Width (mm/cm/m)12.70 mm
Size - Width (mm)12.70 mm
Thickness (mm/cm/m)0.107 mm
Vertical Repeat (mm)22.20 mm
Web Width (mm/cm/m)20.07 mm
Wire Diameter Range0.1 in to 0.12 in
Wire Gauge Range22 gauge to 18 gauge
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
