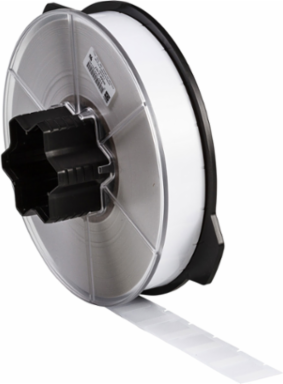

Brady WRAP-2-427 WRAPTOR Series Self-Laminating Vinyl Wire and Cable Labels, 1" H x 1" W, Clear/White, Roll of 5300 Labels,
- MPN: WRAP-2-427
- UPC: 662820613848
- PPN: BRD-WRAP-2-427
- UNSPSC: 55121612
CAD
$495.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.
Features
- Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
- Durable, permanent acrylic adhesive has outstanding water and oil resistance
- UL approved
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 5300
- Recommended Ribbon
- R4302
- Suggested Ribbon Series
- R4300
- Trade Name
- Wraptor™
- Brady Material Number
- B-427
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant; Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 1 in H x 1 in W
- Dimensions 2
- 1 in H x 1 in W
- Height (mm/cm/m)
- 25.4 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.20 in
- Maximum Wire Gauge
- 12 gauge
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Diameter (mm/cm/m)
- 2.54 mm
- Printable Area Dimensions
- 0.375 in H x 1 in W
- Printable Area Height (in/ft/yd)
- 0.375 in
- Printable Area Width (in/ft/yd)
- 1 in
- Sign Size-General
- 1 in x 1 in
- Thickness (mm/cm/m)
- 0.102 mm
- Width (in/ft/yd)
- 1 in
- Wire Diameter Range
- 0.1 in to 0.20 in
Brand NameBrady®
Compatible Surface TypesGeneral
Enables Industry ComplianceASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized

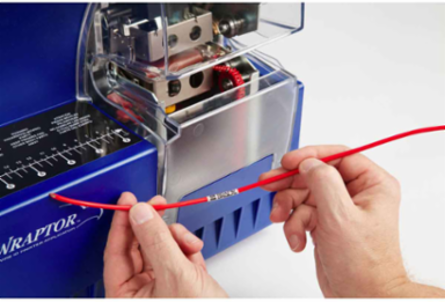

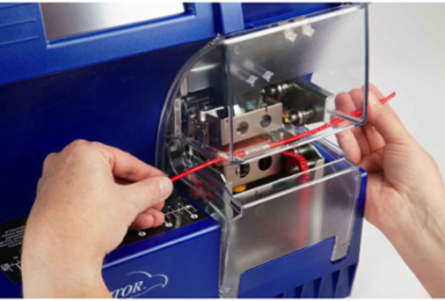

For Use with PrinterWRAPTOR™ Wire Marking System
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Quantity per Row1
ShapeSquare
Total Quantity5300
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-427
Dimensions (Metric)25.4 mm H
Height (in/ft/yd)1 in
Label/Tape Size (in/ft/yd)1 in H x 1 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)5.08 mm
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (in/ft/yd)0.1 in
Minimum Wire Gauge18 gauge
Printable Area Dimensions (Metric)9.53 mm H x 25.4 mm W
Printable Area Height (mm/cm/m)9.53 mm
Printable Area Width (mm/cm/m)25.4 mm
Thickness (in/ft/yd)0.004 in
Vertical Repeat1.125 in
Width (mm/cm/m)25.4 mm
Wire Gauge Range18 gauge to 12 gauge
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliant
- Yes
Contains CA PROP 65 SubstanceNo
EU RoHS CompliancePass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
