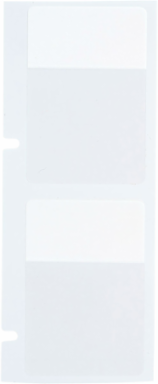

Brady WRAP-4-427 WRAPTOR Series Self-Laminating Vinyl Wire and Cable Labels, 1.5" H x 1" W, Clear/White, Roll of 3600 Labels,
- MPN: WRAP-4-427
- UPC: 662820613862
- PPN: BRD-WRAP-4-427
- UNSPSC: 55121612
CAD
$436.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Self-Laminating Vinyl (B-427) is an excellent material for wire and cable identification. This material has good clarity, conformability and is self-extinguishing.
Features
- Provided in a self-laminated format with a white printable zone and translucent overlaminating area to protect text
- Durable, permanent acrylic adhesive has outstanding water and oil resistance
- UL approved
- Service temperature of -40°F to 158°F (-40°C to 70°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Clear/White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer

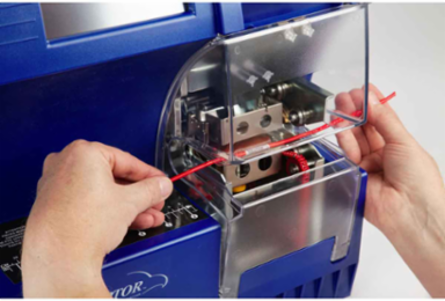

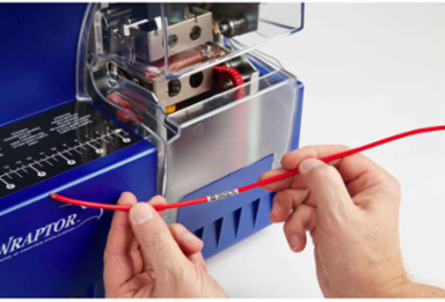

- WRAPTOR™ Wire Marking System

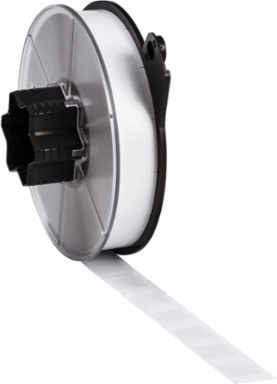

- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- Wraptor™ A6500 Wrap Printer Applicator
- Quantity per Roll
- 3600
- Recommended Ribbon
- R4302
- Shape
- Rectangle
- Suggested Ribbon Series
- R4300
- Total Quantity
- 3600
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-427
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant; Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 1.5 in H x 1 in W
- Dimensions 2
- 1.5 in H x 1 in W
- Height (mm/cm/m)
- 38.10 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 6 gauge
- Minimum Service Temperature °F
- -94 °F
- Minimum Wire Diameter (mm/cm/m)
- 4.06 mm
- Printable Area Dimensions
- 0.5 in H x 1 in W
- Printable Area Height (in/ft/yd)
- 0.5 in
- Printable Area Width (in/ft/yd)
- 1 in
- Sign Size-General
- 1.5 in x 1 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 1.625 in
- Web Width (mm/cm/m)
- 32.77 mm
- Width (mm/cm/m)
- 25.4 mm
- Wire Gauge
- 14-6
Brand NameBrady®
Compatible Surface TypesGeneral
DiagramIcon 6 (D solid)
FinishMatte
IndustryAerospace; Automotive; Biotechnology; Defense; Electrical; Electronics; ICT; Manufacturing; Mass transit; Pharmaceutical; Voice & data communication
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)Wraptor A6500
Quantity per Row1
Ribbon SeriesR4300
Software CompatibilityBrady Workstation, LabelMark
Total Qty per Pack3600 Piece(s) / Roll
Trade NameWraptor™
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-427
Dimensions (Metric)25.40 mm W x 38.10 mm H
Height (in/ft/yd)1.5 in
Label/Tape Size (in/ft/yd)1.5 in H x 1 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)8.10 mm
Minimum Service Temperature °C-70 °C
Minimum Wire Diameter (in/ft/yd)0.16 in
Minimum Wire Gauge14 gauge
Printable Area Dimensions (Metric)12.70 mm H x 25.40 mm W
Printable Area Height (mm/cm/m)12.70 mm
Printable Area Width (mm/cm/m)25.40 mm
Size - Width (mm)25.40 mm
Thickness (mm/cm/m)0.102 mm
Vertical Repeat (mm)41.30 mm
Width (in/ft/yd)1 in
Wire Diameter Range0.16 in to 0.32 in
Wire Gauge Range14 gauge to 6 gauge
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
