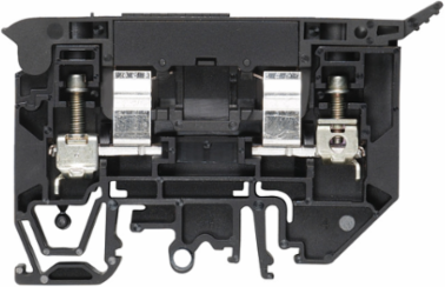

Weidmuller 1880430000 WSI 4/2
- MPN: 1880430000
- PPN: WDM-1880430000
CAD
$20.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
W-Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, cURus, EAC, LLOYDSREG |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Display Element
| Operating voltage for display, max. | 500 V |
|---|
Dimensions And Weights
| Width | 9.1 mm |
|---|---|
| Height | 81.6 mm |
| Depth | 53.5 mm |
| Depth including DIN rail | 46 mm |
| Width (inches) | 0.358 inch |
|---|---|
| Height (inches) | 3.213 inch |
| Depth (inches) | 2.106 inch |
| Net weight | 21.76 g |
Fuse Terminals
| Cartridge fuse | 6.3 x 32 mm (1/4 x 1 1/4") |
|---|---|
| Fuse holder (cartridge holder) | Pivoting |
| Power loss for overload and short-circuit protection for a composite arrangement | 1.6 W at 1.0 A @ 41°C |
| Power loss for short-circuit protection only for an individual arrangement | 4.0 W at 10 A @ 55°C |
| Display | Without LED |
|---|---|
| Operating voltage, max. | 250 V |
| Power loss for short-circuit protection only for a composite arrangement | 2.5 W at 2.5 A @ 68°C |
Dimensions
| TS 15 offset | 32 mm |
|---|---|
| TS 35 offset | 38 mm |
| TS 32 offset | 38 mm |
|---|
Csa Rating Data
| Certificate No. (CSA) | 200039-1575489 |
|---|---|
| Voltage size C (CSA) | 300 V |
| Wire cross section min. (CSA) | 30 AWG |
| Current size C (CSA) | 15 A |
|---|---|
| Wire cross section max. (CSA) | 10 AWG |
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
|---|---|
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
|---|---|
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
Additional Technical Data
| Number of similar terminals | 1 |
|---|---|
| Type of mounting | Snap-on |
| Open sides | right |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, Fuse isolator, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35, TS 32 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Rated voltage to adjoining terminal | 500 V |
| Current at maximum wires | 6.3 A |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
|---|---|
| Rated current | 6.3 A |
| Standards | IEC 60947-7-3 |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Tightening torque, max. | 0.8 Nm |
| Torque level with DMS electric screwdriver | 2 |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Clamping range, max. | 6 mm² |
|---|---|
| Clamping screw | M 3 |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Gauge to IEC 60947-1 | A3 |
| Stripping length | 10 mm |
| Tightening torque, min. | 0.5 Nm |
| Type of connection | Screw connection |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Current size C (cURus) | 15 A |
| Voltage size C (cURus) | 300 V |
| Conductor size Factory wiring max. (cURus) | 10 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 10 AWG |
| Current size B (cURus) | 15 A |
| Voltage size B (cURus) | 300 V |
