Weidmuller 1632360000 WTA 3/ZA WDU4
- MPN: 1632360000
- PPN: WDM-1632360000
CAD
$15.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

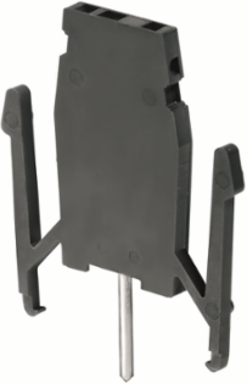

W-Series, Test adapter
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Width
- 6 mm
- Height
- 66.1 mm
- Depth
- 83.9 mm
- Net weight
- 9.31 g
Width (inches)0.236 inch
Height (inches)2.602 inch
Depth (inches)3.303 inch
Dimensions
- Pitch in mm (P)
- 6 mm
Height with TS 35107.6 mm
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Installation advice
- Direct mounting
With snap-in pegsYes
Material Data
- Material
- PA 66
- UL 94 flammability rating
- V-2
Colourblack
Classifications
- ETIM 6.0
- EC002555
- eClass 9.0
- 27-14-11-48
- eClass 10.0
- 27-14-11-48
ETIM 7.0EC002555
eClass 9.127-14-11-48
UNSPSC30-21-18-11
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 6 A
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
Rated voltage250 V
Volume resistance according to IEC 60947-7-x1.83 mΩ
Conductors For Clamping (Rated Connection)
- Clamping screw
- M 2.5
- Stripping length
- 6 mm
- Tightening torque, min.
- 0.3 Nm
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
Number of connections1
Tightening torque, max.0.3 Nm
Type of connectionScrew connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded, min.1 mm²
Wire connection cross-section, solid core, min.0.5 mm²
