Weidmuller

Weidmuller 9540000000 ZEW 35

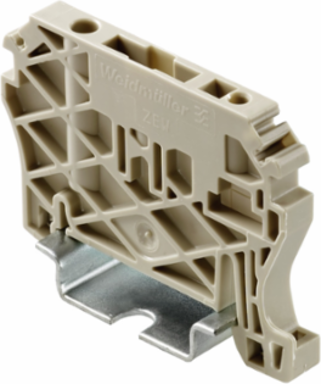

ZEW 35
  • MPN: 9540000000
  • PPN: WDM-9540000000

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$1.34/ EA

Description

Z-series, End bracket

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
6 mm
Height
55 mm
Depth
40 mm
Net weight
6.681 g
Width (inches)0.236 inch
Height (inches)2.165 inch
Depth (inches)1.575 inch

Dimensions

TS 35 offset
41 mm

Additional Technical Data

Installation advice
Direct mounting
Type of mounting
Snap-on
Interlockscrewless

Material Data

Material
Wemid
UL 94 flammability rating
V-2
Colourdark beige

Classifications

ETIM 6.0
EC001041
eClass 9.0
27-14-11-35
eClass 10.0
27-14-11-35
ETIM 7.0EC001041
eClass 9.127-14-11-35
UNSPSC30-21-18-01

System Specifications

Version
For the terminals
RailTS 35

Temperatures

Continuous operating temp., min.
-50 °C
Continuous operating temp., max.100 °C
