Weidmuller 1632380000 WTA 6 WTR2.5
- MPN: 1632380000
- PPN: WDM-1632380000
CAD
$15.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

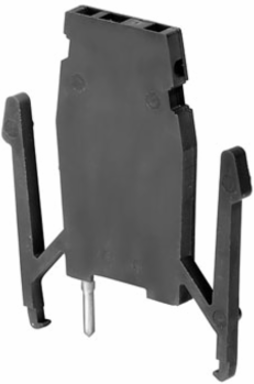

W-Series, Test adapter
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5 mm |
|---|---|
| Height | 66.1 mm |
| Depth | 74.8 mm |
| Net weight | 10.56 g |
| Width (inches) | 0.197 inch |
|---|---|
| Height (inches) | 2.602 inch |
| Depth (inches) | 2.945 inch |
Dimensions
| Pitch in mm (P) | 5 mm |
|---|
| Height with TS 35 | 107.6 mm |
|---|
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
|---|---|
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
|---|---|
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| With snap-in pegs | No |
|---|
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | black |
|---|
Classifications
| ETIM 6.0 | EC002555 |
|---|---|
| eClass 9.0 | 27-14-11-48 |
| eClass 10.0 | 27-14-11-48 |
| ETIM 7.0 | EC002555 |
|---|---|
| eClass 9.1 | 27-14-11-48 |
| UNSPSC | 30-21-18-11 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Rated current | 6 A |
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Rated voltage | 250 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
Conductors For Clamping (Rated Connection)
| Clamping screw | M 2.5 |
|---|---|
| Stripping length | 6 mm |
| Tightening torque, min. | 0.3 Nm |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 1.5 mm² |
| Number of connections | 1 |
|---|---|
| Tightening torque, max. | 0.3 Nm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded, min. | 1 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
