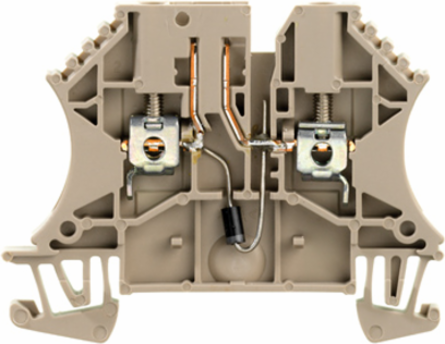

Weidmuller 1961750000 WTR 2.5 D+ 2STB 6.9/2.3

MPN: 1961750000
PPN: WDM-1961750000

$20.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Test-disconnect terminal, Screw connection, 2.5 mm², 500 V, 1 A, Pivoting, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CSA, EAC, GERMLLOYD, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	60 mm
Depth	48 mm
Net weight	9.03 g

Width (inches)	0.201 inch
Height (inches)	2.362 inch
Depth (inches)	1.89 inch

Dimensions

TS 35 offset	32 mm

Csa Rating Data

Certificate No. (CSA)	200039-1152890
Voltage size C (CSA)	300 V
Wire cross section min. (CSA)	26 AWG

Current size C (CSA)	10 A
Wire cross section max. (CSA)	12 AWG

2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)

Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.	0.5 mm²

Wire cross-section, finely stranded, two clampable wires, max.	1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.	1.5 mm²

Additional Technical Data

Electronic component	Diode
Number of similar terminals	1
Type of mounting	Snap-on

Explosion-tested version	No
Open sides	right

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000902
eClass 9.0	27-14-11-26
eClass 10.0	27-14-11-26

ETIM 7.0	EC000902
eClass 9.1	27-14-11-26
UNSPSC	30-21-18-11

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

System Specifications

Version	Screw connection, Spacer, with diode, With sockets, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	2.5 mm²
Rated current	1 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Rated voltage	500 V
Current at maximum wires	1 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Connection cross-section, stranded, min.	1.5 mm²
Gauge to IEC 60947-1	A3
Stripping length	10 mm
Tightening torque, min.	0.5 Nm
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Clamping screw	M 3
Connection direction	on side
Number of connections	2
Tightening torque, max.	0.6 Nm
Type of connection	Screw connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
