Weidmuller 1191630000 WTR 2.5 GN
- MPN: 1191630000
- PPN: WDM-1191630000
CAD
$7.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

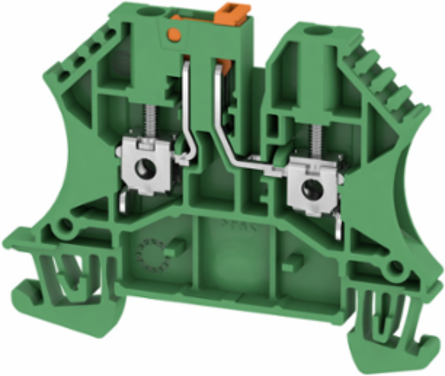

Test-disconnect terminal, Screw connection, 2.5 mm², 500 V, 24 A, Pivoting, green
Documentation & Downloads
Specifications
Approvals
- Approvals
- DEMKOATEX, EAC, GERMLLOYD, IECEXULD, KEMAKEUR
ROHSConform
Dimensions And Weights
- Width
- 5.1 mm
- Height
- 60 mm
- Depth
- 48 mm
- Depth including DIN rail
- 49 mm
Width (inches)0.201 inch
Height (inches)2.362 inch
Depth (inches)1.89 inch
Net weight9.1 g
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Explosion-tested version
- No
- Type of mounting
- Snap-on
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourgreen
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
System Specifications
- Version
- Screw connection, Spacer, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Integral test socketNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated current
- 24 A
- Standards
- IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Pollution severity
- 3
Rated voltage500 V
Current at maximum wires24 A
Volume resistance according to IEC 60947-7-x1.33 mΩ
Rated impulse withstand voltage6 kV
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- DEMKO14ATEX1389U
- Max. voltage (ATEX)
- 500 V
- Wire cross section max. (ATEX)
- 2.5 mm²
- Current (IECEX)
- 24 A
- Marking EN 60079-7
- Ex ec II C Gc
Certificate No. (IECEX)IECExUL14.0097U
Current (ATEX)24 A
Max. voltage (IECEX)500 V
Wire cross section max. (IECEX)2.5 mm²
Ex 2014/34/EU labelII 3 G D
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Connection cross-section, stranded, max.
- 4 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 0.8 Nm
- Torque level with DMS electric screwdriver
- 1
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Clamping screwM 2.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A3
Stripping length10 mm
Tightening torque, min.0.4 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 30
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
