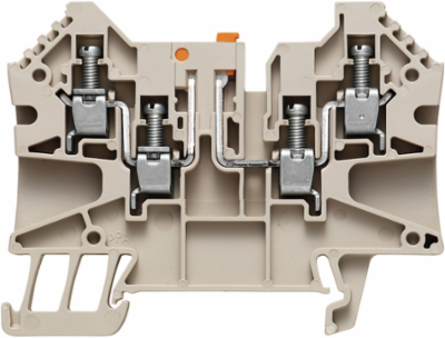

Weidmuller 1905090000 WTR 4/ZZ
- MPN: 1905090000
- PPN: WDM-1905090000
CAD
$10.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Test-disconnect terminal, Screw connection, 4 mm², 500 V, 27 A, Pivoting, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, cURus, EAC
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 6.1 mm
- Height
- 70 mm
- Depth
- 53 mm
- Depth including DIN rail
- 53.5 mm
Width (inches)0.24 inch
Height (inches)2.756 inch
Depth (inches)2.087 inch
Net weight15.22 g
Dimensions
- TS 35 offset
- 37 mm
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size C (CSA)
- 25 A
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 30 AWG
Current size B (CSA)25 A
Voltage size B (CSA)600 V
Wire cross section max. (CSA)10 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.1.5 mm²
Additional Technical Data
- Number of similar terminals
- 1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Twin connection, Spacer, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 4
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- Pivoting
Integral test socketNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 4 mm²
- Rated current
- 27 A
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage500 V
Current at maximum wires27 A
Power loss in accordance with IEC 60947-7-x1.02 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.05 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection direction
- on side
- Number of connections
- 4
- Tightening torque, max.
- 1 Nm
- Torque level with DMS electric screwdriver
- 2
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
Clamping range, max.6 mm²
Clamping screwM 3
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A4
Stripping length10 mm
Tightening torque, min.0.5 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 30 AWG
- Conductor size Field wiring min. (cURus)
- 30 AWG
- Current size C (cURus)
- 25 A
- Voltage size C (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)10 AWG
Conductor size Field wiring max. (cURus)10 AWG
Current size B (cURus)25 A
Voltage size B (cURus)600 V
