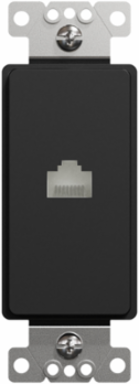

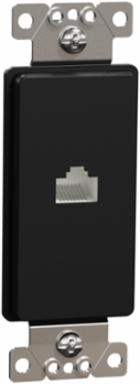

Square D SQR87601BK X Series RJ45 Data Jack Decorator Strap 37mm x 103mm, Black, ETL Certified
- MPN: SQR87601BK
- UPC: 785901550037
- PPN: SCH-SQR87601BK
CAD
$11.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Square D X Series Category 6 RJ45 Data Jack Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your data networking with cat 6 insert and benefits from RJ45 connector. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It fits in any decorator opening and is easy to clean. This combination decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. This device is compatible with any CAT6 cable for ethernet connection and other networks. It features a 110 punchdown with stuffer cap for wire retention. It has a width of 37 mm, a height of 103 mm and a depth of 33 mm. By satisfying the UL 1863 standard, this data back decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 33mm. This device is black with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Depth33 mm
Communications & Management Attributes
- Communication Network Category
- 6
Physical Attributes
- Color
- Black, Black
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, SC
- Awg Gauge
- AWG 26...AWG 22 solid, AWG 24...AWG 22 stranded
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2020-10-30
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Residential
- Aesthetic Name
- X Series
- Contacts Material
- phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel
- Energy Efficiency Optimized
- False
- Mounting Mode
- by screws
- Number Of Contacts
- 8
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Surface Treatment
- painted
- Targeted Channel
- distributor
- Height Nominal
- 103 mm
- Certificate Agency
- ETL verified
- Package Weight(Lbs)
- 49.7 g
- Warranty (In Months)
- 24
Persona Type NamesEnd User, Consumer, Contractor, Electrician
Materialplastic: strap, metal: fixing frame
Local Publishable Date2026-06-23
Pre Comm Date2020-12-18
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Cable Shielding TypeUTP
Device Applicationcommunication
Market Segmentresidential
Number Of Contact Position8
Number Of Gangs1 gang
Product Or Component Typedata socket
RangeSquare D X Series
Surface FinishMatte
Sustainable PackagingNo
Type Of Cable4 pairs cable
Width Nominal37 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- data socket
ETIM
- ETIM 8
- EC001121
ETIM 9EC001121
Contractual Warranty Attributes
- Warranty Period
- 2 years
Warranty2 years
Overview Attributes
- Device Presentation
- mechanism with fixing frame
