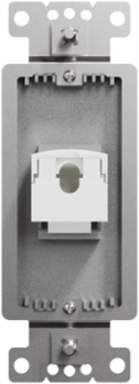

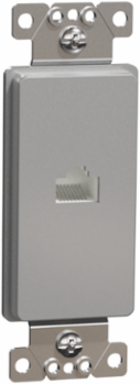

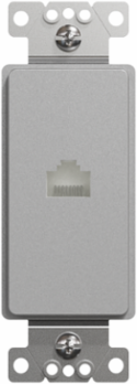

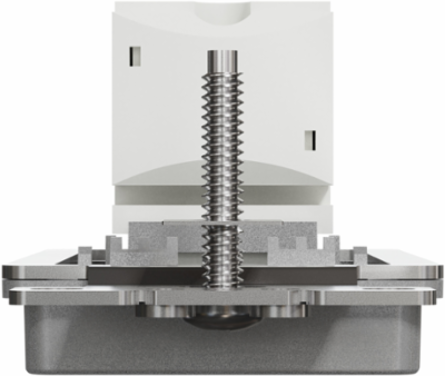

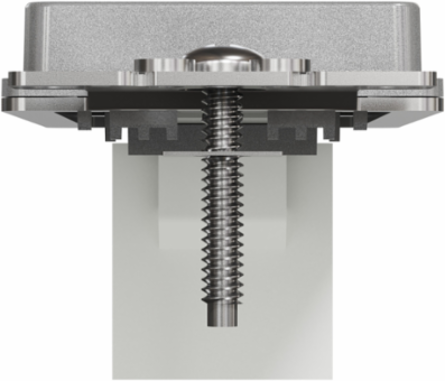

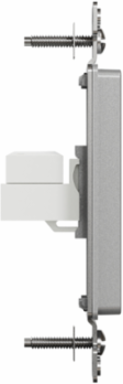

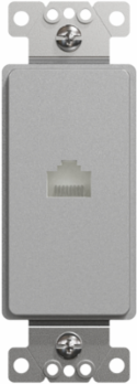

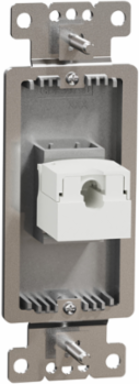

Square D SQR87601GY X Series Category 6 RJ45 Data Jack Decorator Strap, 37 mm Wide, ETL Certified
- MPN: SQR87601GY
- UPC: 785901550044
- PPN: SCH-SQR87601GY
CAD
$11.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series Category 6 RJ45 Data Jack Decorator Strap offers an array of new features, such as flush mounting, easy installation, and connectivity. This device supports your data networking with cat 6 insert and benefits from RJ45 connector. The mechanism with fixing frame belongs to X Series aesthetic group. Sold in 1 piece, its mounting mode is made by screws. It fits in any decorator opening and is easy to clean. This combination decorator strap benefits from an elegant matte finishing, constituting an added-value for your interior design. This device is compatible with any CAT6 cable for ethernet connection and other networks. It features a 110 punchdown with stuffer cap for wire retention. It has a width of 37 mm, a height of 103 mm and a depth of 33 mm. By satisfying the UL 1863 standard, this data back decorator strap is ETL certified. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 33mm. This device is grey with matte surface finish. This device comes with painted surface treatment. This device is compliant with UL 1863 standard and ETL certification.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 33 mm |
|---|
Communications & Management Attributes
| Communication Network Category | 6 |
|---|
Physical Attributes
| Color | Gray, Gray |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Cable Shielding Type | UTP |
| Device Application | communication |
| Market Segment | residential |
| Mounting Mode | by screws |
| Number Of Contacts | 8 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Sustainable Packaging | No |
| Type Of Cable | 4 pairs cable |
| Width Nominal | 37 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536698000 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Local Publishable Date | 2026-06-23 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Awg Gauge | 26 AWG...22 AWG solid24 AWG...22 AWG stranded |
| Contacts Material | phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Number Of Contact Position | 8 |
| Number Of Gangs | 1 gang |
| Product Or Component Type | data socket |
| Range | Square D X Series |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Height Nominal | 103 mm |
| Certificate Agency | ETL verified |
| Package Weight(Lbs) | 49.7 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | data socket |
|---|
ETIM
| ETIM 8 | EC001121 |
|---|
| ETIM 9 | EC001121 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
