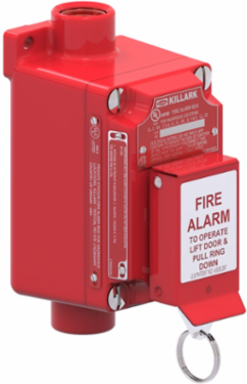

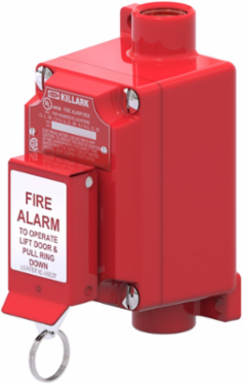

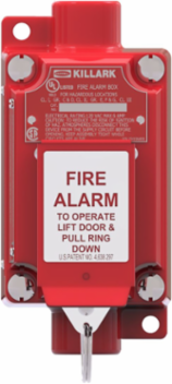

Killark XAL-458 Aluminum Fire Alarm Station 3/4 Inch Hub, 2NO/2NC Contacts, 8.25 x 5.875 x 6.75 Inch
Killark XAL-458 Aluminum Fire Alarm Station 3/4 Inch Hub, 2NO/2NC Contacts, 8.25 x 5.875 x 6.75 Inch
- MPN: XAL-458
- UPC: 783936880402
- PPN: HBL-XAL-458
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2135.54/ EA
Description
XAL Series - Aluminum Feed-Thru Fire Alarm Station With Pull-Ring Activation - Hub Size 3/4 Inch - 2NO/2NC Contact Rating
Features
- Enclosure is made of copper free aluminum alloy
- Conduit openings are 3/4” NPT feed through.
- Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
- Bilingual nameplates included per CSA requirement.
- Internal ground screw is standard.
- The alarm station is activated by lifting the front cover and pulling down ring. This quick easy to use two-step process prevents unintentional operation.
- Has 2 normally open and 2 normally closed contacts.
- Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
Specifications
Specifications
- Number of Poles
- 1
- Special Features
- Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
- Back Box Type
- SWB
- Country of Origin
- US
- Dimensions
- 8.25 in x 5.875 in x 6.75 in
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 8.25 in
- Action
- SP
- Amperage Rating
- 10 A
- Contact Rating
- 7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR31085
- UL File Number
- E50498
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Size8.25 in x 5.875 in x 6.75 in
ARRA CompliantContact Manufacturer
ColorRed
Depth4-1/2
Each - Width5.875 in
Height6.75 in
Width5.875 in
ActuatorLift Cover, Pull ring
ApplicationHazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings. Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. Areas where emergency control of fire alarm or signal circuits is required.
Frequency Rating50/60 Hz
TypeAluminum Fire Alarm Station With Pull-Ring Activation
Description - InvoiceFIRE ALARM 2NO 2NC CONTACTS
Harmonization Code8531109999
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging4.46
SeriesXAL Series
Carton - SCC-14 Next Lower Level Sub Pack00783936880402
Certifications
- EU RoHS Indicator
- Contact Manufacturer
