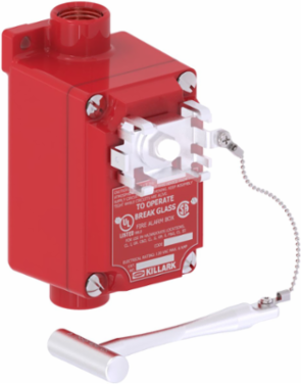

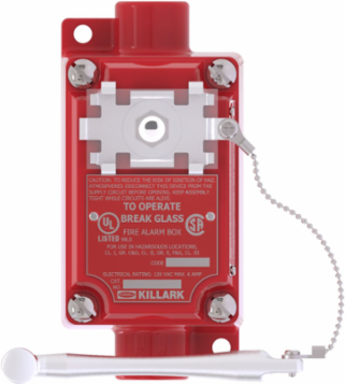

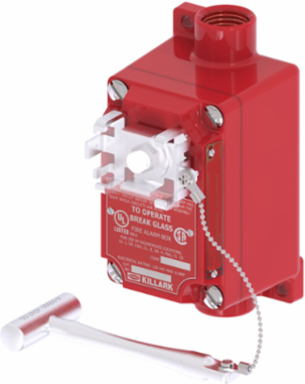

Killark XAS-53 Aluminum Fire Alarm Station with Break Glass Activation, 3/4 Inch NPT, 7200 VA Contact Rating
- MPN: XAS-53
- UPC: 783936880396
- PPN: HBL-XAS-53
- UNSPSC: 39122216
CAD
$2771.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
XAS Series - Aluminum Feed-Thru Fire Alarm Station With Breaking-Glass Activation - Hub Size 3/4 Inch Npt - 1NO/1NC Contact Rating
Features
- Enclosure is made of copper free aluminum alloy
- Conduit openings are 3/4” NPT feed through.
- Red, textured powder epoxy paint finish is standard on box and cover to provide high visibility for alarm station.
- Bilingual nameplates included per CSA requirement.
- Internal ground screw is standard.
- Breaking glass with provided hammer activates alarm.
- Reset by replacing glass.
- Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
Specifications
Key Specifications
- Number of Poles
- 1
- Special Features
- Killark XCS Series Fire Alarm Station for Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 7 & 9 protection is required.
- Country of Origin
- United States
- Color
- Red
- Dimensions
- 8.25 in x 5.75 in x 6.75 in
- Height
- 6.75 in
- Width
- 5.75 in
- Actuator
- Break Glass
- Application
- Hazardous areas due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fibers or flyings. Installation at petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. Areas where emergency control of fire alarm or signal circuits is required.
- Frequency Rating
- 50/60 Hz
- Type
- Aluminum Fire Alarm Station With Breaking-Glass Activation
- Description - Invoice
- FIRE ALARM BREAK GLASS TYPE
- Harmonization Code
- 8531109999
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 3
- Series
- XAS Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Size8.25 in x 5.75 in x 6.75 in
ARRA CompliantContact Manufacturer
Back Box TypeSWB
Depth4-1/16 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length8.25 in
ActionSP
Amperage Rating10 A
Contact Rating7200 VA (make), 720 VA (break), 10A cont. @ 600V AC; 2.5A cont. @ 600V DC.
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR31085
UL File NumberE50498
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936880396
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
