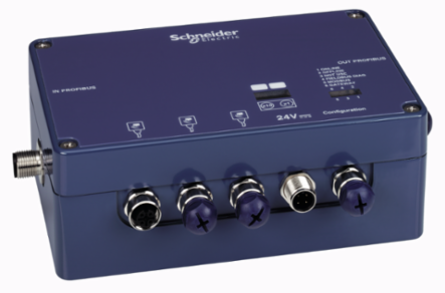

Telemecanique Sensors XGSZ33PDP Connection Profibus box, Radio frequency identification XG, DP, 3 channels for XGCS smart antennas
- MPN: XGSZ33PDP
- PPN: TES-XGSZ33PDP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Connection Profibus box, Radio frequency identification XG, DP, 3 channels for XGCS smart antennas
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 female connector M12 4 pins PC connection A encoding) || 1 female connector M12 5 pins network output B encoding) || 1 male connector M12 4 pins power supply A encoding) || 1 male connector M12 5 pins network input B encoding) || 3 female connectors M12 5 pins stations XGCS A encoding) |
|---|---|
| Range Of Product | Telemecanique Radio frequency identification XG |
| Number Of Channels | 3 |
| Device Short Name | XGSZ33 |
| Communication Port Protocol | Profibus DP V1 |
|---|---|
| Station Name | XGCS49 || XGCS89 |
| Product Or Component Type | connection Profibus box |
| [Us] Rated Supply Voltage | 24 V DC Protective Extra Low Voltage |
Complementary
| Status Led | diagnostics 1 dual color LED red/green) || RFID communication 1 dual color LED red/green) || communication network 1 LED green) || diagnostics 1 LED red) |
|---|---|
| Communication Service | cyclical variable exchange |
| Register Words | 1...49 words |
| Transmission Rate | 9.6 kbit/s...12000 kbit/s |
| Net Weight | 1.06 kg |
| Supply Voltage Limits | 21.6-26.4 V DC |
|---|---|
| Power Consumption In W | 2.5 W |
| Marking | CE |
| Transmission Support Medium | 2 twisted shielded pairs cable |
Environment
| Product Certifications | Profibus |
|---|---|
| Ambient Air Temperature For Operation | 0-55 °C |
| Ambient Air Temperature For Storage | -25-85 °C |
| Relative Humidity | 30-95 % |
|---|---|
| Emc Filter | Class B EMC filter EN 55022 || Level 3 EMC filter IEC 61000 |
| Ip Degree Of Protection | IP65 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111218EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP060407EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
