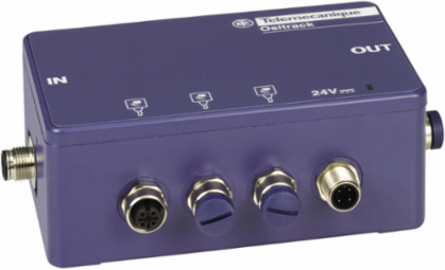

Telemecanique Sensors TCSAMT31FP Connection tap off box, Radio frequency identification XG, 3 RFID station to Modbus or UNI TELWAY, M12
- MPN: TCSAMT31FP
- PPN: TES-TCSAMT31FP
CAD
$636.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Connection tap off box, Radio frequency identification XG, 3 RFID station to Modbus or UNI TELWAY, M12
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | 1 female connector M12 5 pins network output A coding) || 1 male connector M12 4 pins power supply A coding) || 1 male connector M12 5 pins A coding) || 3 female connectors M12 5 pins stations XGCS A coding) |
|---|---|
| Range Of Product | Telemecanique Radio frequency identification XG |
| Number Of Channels | 3 |
| Device Short Name | TCS |
| Communication Port Protocol | Modbus || Uni-Telway |
|---|---|
| Station Name | XGCS49 || XGCS89 |
| Product Or Component Type | connection tap-off box |
| [Us] Rated Supply Voltage | 24 V DC Protective Extra Low Voltage |
Complementary
| Status Led | supply on 1 LED green) |
|---|---|
| Marking | CE |
| Supply Voltage Limits | 19.2-29 V DC |
|---|---|
| Net Weight | 1.06 kg |
Environment
| Product Certifications | UL |
|---|---|
| Ambient Air Temperature For Operation | -25-55 °C |
| Ambient Air Temperature For Storage | -40-85 °C |
| Relative Humidity | 30-95 % |
|---|---|
| Emc Filter | Class B EMC filter EN 55022 || Level 3 EMC filter IEC 61000 |
| Ip Degree Of Protection | IP65 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
