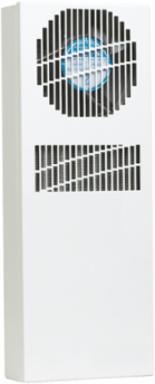

nVent Hoffman XR200426012 ClimaGuard Air-to-Air Heat Exchanger Indoor 230V, 508mm Height, Mild Steel
- MPN: XR200426012
- UPC: 783510113377
- PPN: HOF-XR200426012
- UNSPSC: 40101802
CAD
$2498.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ClimaGuard Indoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Indoor, item XR200426012 is rated for XR20 4w/F 230v
Features
- Unique counterflow aluminum core for high-efficiency and high-performance heat transfer, except for the XR20 and XR29-08 which use a modified heat pipe core
- Streamlined aesthetics with no visible mounting rails; slim design allows for mounting to narrow or shallow enclosures
- Models for 115 and 230 VAC power input
- Operating temperature range from -20 F/-29 C to 140 F/60 C
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Filterless design for low maintenance and easy cleaning
- Reliable top-quality bearing fans and impellers make these units run quietly and with increased reliability
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
- Four fasteners allow simple removal of front cover for easy access
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Capacity Watts Per °C
- 7
- Height (H)
- 508
- Depth (D)
- 76
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Operating Temperature
- -29
- Protection Rating
- NEMA Type 12
- Voltage AC
- 200
- Max Watts Per °C
- 7
- Weight
- 14.6
Capacity Watts Per °F4
Nominal Voltage230
Width (W)191
MaterialMild Steel
ColorLight Gray
Max Current0.3
Product FamilyClimaGuard
NEMA Rating12 Indoor, dust-resistant
Max Watts Per °F4
Thickness (T)1.21
Sub BrandProAir
