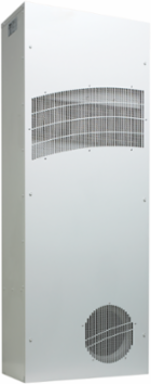

nVent Hoffman TX528348100 ClimaGuard Air-to-Air Heat Exchanger 500W, -40 to 149°F, Mild Steel, NEMA 4
- MPN: TX528348100
- UPC: 783510188610
- PPN: HOF-TX528348100
- UNSPSC: 40101802
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ClimaGuard Outdoor Heat Exchangers offer reliable, low maintenance, closed-loop cooling. This ClimaGuard Air-to-Air Heat Exchanger Outdoor, item TX528348100 is rated for X52 83w/F 48v
Features
- Unique counterflow aluminum core for high efficiency and high performance heat transfer
- Engineered for temperature extremes, corrosive environments and wind driven rain
- Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
- Variable speed blowers standard on DC powered units for quiet running
- Filterless design for low maintenance and easy cleaning
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Surface or recessed mount capable
- Every unit functionally tested before shipping
- Mounting hardware, gaskets and user manual furnished with the unit
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Capacity Watts Per °C
- 150
- Height (H)
- 1,321
- Depth (D)
- 257
- Operating Temperature
- -40
- Product Family
- ClimaGuard
- Finish
- Powder Coated
- Color Code
- RAL 7035
- Weight
- 105
- Voltage DC
- 48
- Thickness (T)
- 1.21
- Power Consumption
- 83 W per deg F max
- Mounting
- Surface Mounted
Capacity Watts Per °F83
Nominal Voltage48
Width (W)500
Max Current7.8
Protection RatingNEMA Type 4
MaterialMild Steel
ColorLight Gray
NEMA Rating4 Watertight
Max Watts Per °F83
Max Watts Per °C150
Temperature Range-40 to 149 deg F
Housing MaterialMild Steel
Dimensions52 x 19.7 x 10.1 in
