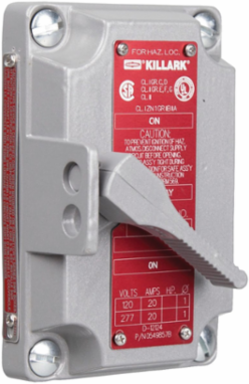

Killark XNS-5C Aluminum Tumbler Switch Cover 20A, 5.5 x 5 x 3 Inch, SPDT Center Off
Killark XNS-5C Aluminum Tumbler Switch Cover 20A, 5.5 x 5 x 3 Inch, SPDT Center Off
- MPN: XNS-5C
- UPC: 783936913452
- PPN: HBL-XNS-5C
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$283.77/ EA
Description
XS Series - Aluminum SPDT (Center Off) Tumbler Switch Cover Without Device - 20A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 4-1/4
- Each - Width
- 5.000 in
- Height
- 3 in
- Action
- SPDT (CTR OFF)
- Amperage Rating
- 20 A
- Color
- Gray
- Size
- 5.5 in x 5 in x 3 in
- Type
- Aluminum Tumbler Switch Cover
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2"3/4" SPDT CENTER OFF CVR
- Harmonization Code
- 7616995190
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 0.96
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Country of OriginMX
Dimensions5.5 in x 5 in x 3 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length5.5 in
ActuatorLever
ApplicationUsed where making, breaking, or changing connections in an electric circuit is required.
Number of Poles1
Special FeaturesKillark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Width5 in
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11712
UL File NumberE53360
SeriesXNS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936913452
Certifications
- EU RoHS Indicator
- Contact Manufacturer
