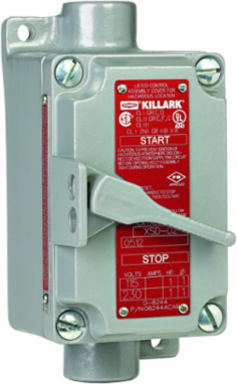

Killark XST15-53C Aluminum 3-Way Tumbler Switch Unit, 3/4 Inch Hub, 15A, 347VAC, SPDT
Killark XST15-53C Aluminum 3-Way Tumbler Switch Unit, 3/4 Inch Hub, 15A, 347VAC, SPDT
- MPN: XST15-53C
- UPC: 783936075501
- PPN: HBL-XST15-53C
- UNSPSC: 39122211
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1241.63/ EA
Description
XST Series - Aluminum Feed-Thru 3-Way Tumbler Switch Unit - Hub Size 3/4 Inch - 347VAC/15A
Features
- Front lever rotary operated switch assemblies.
- Standard provisions for padlocking in either “ON” or “OFF” position.
- The lever is connected to a threaded stainless steel shaft which passes through the cover.
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Country of Origin
- United States
- Depth
- 4-1/4
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.25 in
- Actuator
- Lever
- Application
- Used where making, breaking, or changing connections in an electric circuit is required.
- Number of Poles
- 1
- Special Features
- Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Width
- 5.75 in
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11712
- Series
- XST Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936075501
Back Box TypeSWB
Dimensions6.25 in x 5.75 in x 4.25 in
Height4.25 in
ActionSPDT (3-way)
Amperage Rating15 A
ColorGray
Size6.25 in x 5.75 in x 4.25 in
TypeAluminum Tumbler Switch Box And Cover
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceSWITCH CVR,3 WAY 347VAC15A,3/4" FEEDTHRU
Harmonization Code8536509040
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging2.64
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
