Schneider Electric ABFH34M100 Modicon M340 Connection Cable, 1 Meter Length, IP20 Rated
Schneider Electric ABFH34M100 Modicon M340 Connection Cable, 1 Meter Length, IP20 Rated
- MPN: ABFH34M100
- PPN: SCH-ABFH34M100
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$133.15/ EA
Description

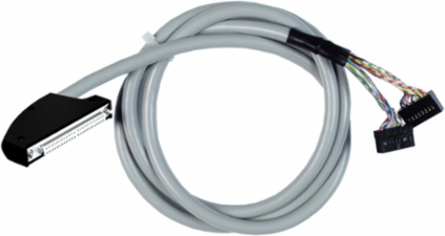

This cordset belongs to Modicon Telefast prewiring system. This cordset is made for connection between Modicon X80 PAC or Modicon M340 I/O modules and Telefast sub-base. It is a Y-cordsets equipped with one 40-way FCN connector and two HE10 20-way connectors. It ensures the connection between Modicon X80 PAC or Modicon M340 I/O modules and ABE7H20E000 sub-base. Its Gauge cross-section is AWG 28/0.08squaremm. It ensures a IP20. Its length is 1meter. It is a connection cordset for all types of industrial applications. This cordset is made for connection between Modicon X80 PAC or Modicon M340 I/O modules and Telefast sub-base. Modicon ABE7 Telefast is a pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Specifications
- Range Of Product
- Modicon M340
- Accessory / Separate Part Category
- connection accessories
Accessory / Separate Part Designationconnection cable
Accessory / Separate Part Typeconnection cable
Complementary
- Cable Length
- 1 m
