Schneider Electric BMXFCC103 Modicon M340 Preformed Cordset, 40 Way, 1 Meter Long
- MPN: BMXFCC103
- PPN: SCH-BMXFCC103
CAD
$184.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

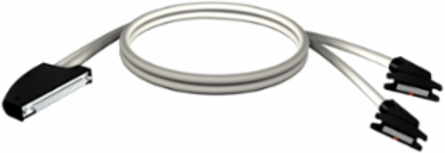

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32-channels I/O modules. It enables the connection between I/O of modules with 40-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 40-way connector at one end and two HE 10 connectors at the other end, and is 1 meter long.
Documentation & Downloads
Specifications
Key Specifications
- Number Of Cables
- 2
- Range Of Product
- Modicon X80
- Cable Length
- 1 m
- Accessory / Separate Part Destination
- for I/O module with 40-way connectors
Electrical Connection1 connector 40 ways || 2 connectors HE10
Accessory / Separate Part Designationpreformed cordset for Telefast Advantys ABE7 sub-bases
Accessory / Separate Part Typepreformed cordset
Complementary
- Total Number Of Wires
- 40
- Net Weight
- 0.35 kg
Wire Section0.324 mm²
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1312019EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
