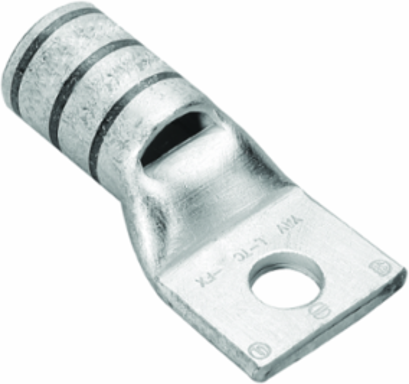

Burndy YAB28CG43 Tin Electro Plated Copper Tubing BRAZED LUG

MPN: YAB28CG43
UPC: 781810306369
PPN: BUR-10012712

$177.72

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Tin Electro Plated Copper Tubing BRAZED LUG

Specifications

Current Related

Rating - KVA	35 kV
Voltage - Maximum	35000

Rating - Minimum Voltage	600

Dimensions

Dimension - B Length inch	1.61 in
Dimension - Height inch	3.25 in
Dimension - Hole Size mm	11 mm
Dimension - Length Overall inch	2.50 in
Dimension - Pad Width inch	1.25 in
Physical Attribute - Tongue Angle	90 Degree

Dimension - D inch	2.50 in
Dimension - Hole Size inch	0.44 in
Dimension - L Length Overall mm	64 mm
Dimension - N inch	0.63 in
Dimension - Z inch	0.87 in

Certifications and Compliance

Certification - CSA Approved	No
Certification - cULus	No
UL Listed	No

Certification - UL Recognized	No
Standards - RoHS Compliance Status	EX

Conductor Related

Conductor - Copper Flex G Size	4/0 AWG
Conductor - Copper Flex I Size	4/0 AWG
Conductor - Copper Flex M Size	4/0 AWG
Conductor - Material	Copper

Conductor - Copper Flex H Size	4/0 AWG
Conductor - Copper Flex K Size	4/0 AWG
Conductor - Copper Flex M Size Range	4/0 AWG

General

Connector Type	Terminal
Feature - Barrel Style	Chamfered
Item Type	4D
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810306369
