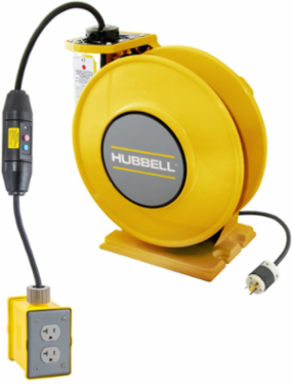

Hubbell Wiring Device-Kellems HBLI45123GF220Y Yellow Industrial Reel 45 Ft, 20 A, GFCI Module, 125 VAC
- MPN: HBLI45123GF220Y
- UPC: 783585586434
- PPN: HBL-HBLI45123GF220Y
- UNSPSC: 26121635
CAD
$2464.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Yellow Industrial Reel with Yellow Portable Outlet Box, GFCI Module and (2) 20A Duplex Receptacles, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- cULus Listed
- Cable Active Length
- 45 Ft
- Standard
- cULus Listed
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Number Of Wires
- 3-Wire
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL45123GF220
- Series
- inREACH® Series
- BOX SIZE
- 16.750x16.500x14.500 (in)
- Case Weight
- 35.000 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Cable Length45 Ft
Width14.500 in
ApplicationIndustrial
Cable Type#12/3 SJO
TypeReel With Duplex Receptacle(s)
Engineering Drawing 1 Display TextHBLI45123GF220Y AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
StyleFour Outlets and GFCI
Description - InvoiceIND REEL, W/GF & (2) DPLX, 45', 12/3, Y
Harmonization Code8536308000
MSDS FlagNo
Sub Class CodeA52A510
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783585586434
Pallet Height38.500 in
Pallet Weight460.000 lb.
NAICS Code335931A107
