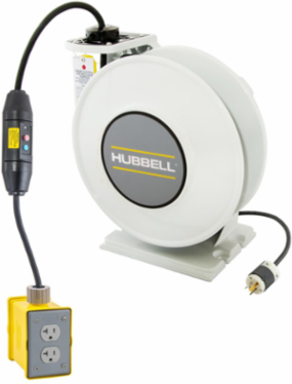

Hubbell Wiring Device-Kellems HBLI45123GF220 Industrial Reel with GFCI, 45 Ft, 20 A, 125 VAC
- MPN: HBLI45123GF220
- UPC: 783585586403
- PPN: HBL-HBLI45123GF220
- UNSPSC: 26121635
CAD
$2464.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
White Industrial Reel with Yellow Portable Outlet Box, GFCI Module and (2) 20A Duplex Receptacles, UL Type 1, 45 Ft, #12/3 SJO, 20 A, 125 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 1
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- cULus Listed
- Cable Active Length
- 45 Ft
- Standard
- cULus Listed
- Voltage Rating
- 125 VAC
- General Literature Asset 1 Display Text
- Plenum Rated Cord Reel Enclosure
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Style
- Four Outlets and GFCI
- Description - Invoice
- IND REEL, W/GF & (2) DPLX, 45', 12/3, WH
- Harmonization Code
- 8536308000
- MSDS Flag
- No
- Sub Class Code
- A52A510
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 33.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet - GTIN - Package
- 70783585586402
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Cable Length45 Ft
Width14.400 in
ApplicationIndustrial
Cable Type#12/3 SJO
TypeReel With Duplex Receptacle(s)
Engineering Drawing 1 Display TextHBLI45123GF220 AutoCAD Drawing
General Literature Asset 2 Display TextCord Reels
Number Of Wires3-Wire
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL45123GF220
SeriesinREACH® Series
BOX SIZE16.800x16.600x14.400 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585586403
Case Weight33.100 lb.
Pallet Height33.600 in
Pallet Weight529.600 lb.
NAICS Code335931A107
Certifications
- EU RoHS Indicator
- Contact Manufacturer
