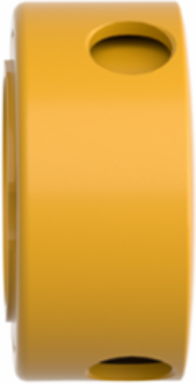

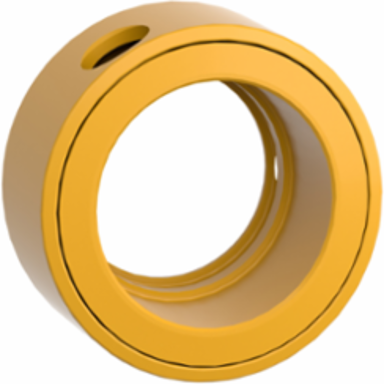

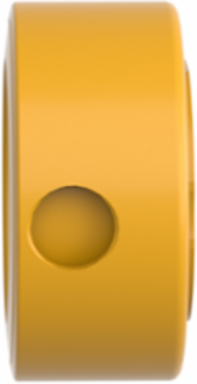

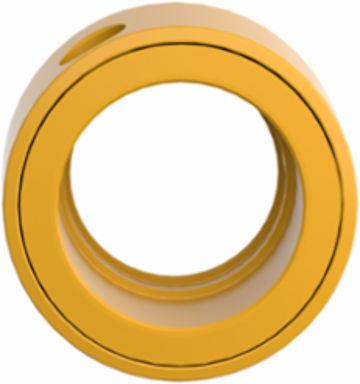

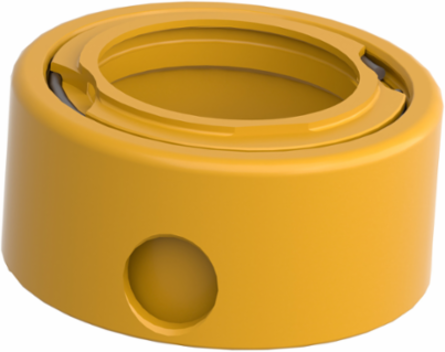

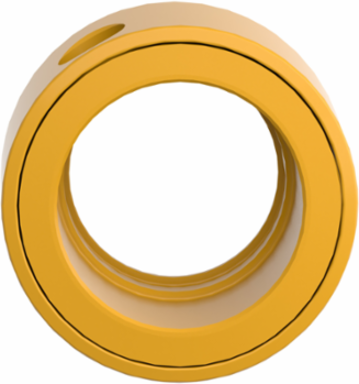

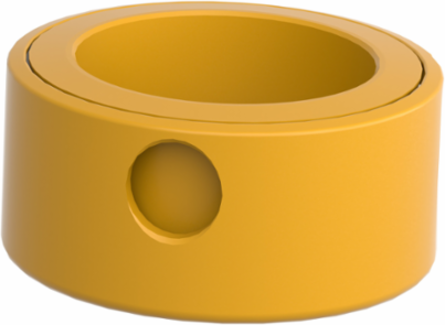

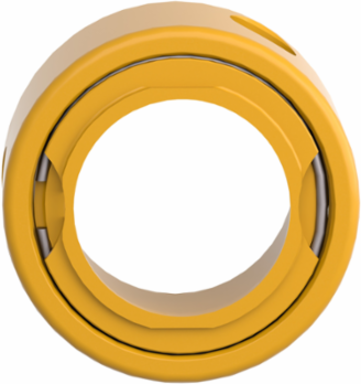

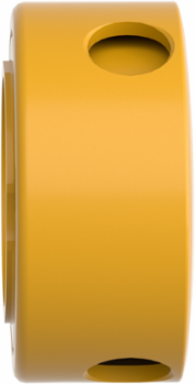

Schneider Electric ZBZ3605 Padlocking Kit for 22mm Emergency Stop Push Button, Yellow, Metal
- MPN: ZBZ3605
- PPN: SCH-ZBZ3605
CAD
$94.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, padlocking kit for emergency stop function is yellow. It is compatible with Harmony XB4 and XB5 mushroom head push buttons. This padlocking kit is designed as an accessory to be used with push button to provides a secure manner for authorized staff to operate emergency stop mode when required. It is easily installed and attached to Harmony XB4 and XB5 mushroom head push buttons units. It secures machine and system operation with padlock, only available to authorized operators.
Features
- Designed as a universal safety accessory, this kit fits seamlessly onto both Harmony 22mm XB4 metal and XB5 plastic modular mushroom head push buttons. It integrates perfectly into your current operator interface configuration without requiring panel modifications or layout re-engineering, dramatically simplifying inventory across diverse control stations.
- This kit introduces a physical, padlockable mechanism directly over the emergency stop button, ensuring only authorized safety personnel or maintenance technicians can reset or activate specific operational modes. It functions as a dependable mechanical lock out/tag out (LOTO) checkpoint, keeping your plant environment completely secure and strictly controlling system overrides.
- Featuring a highly responsive telescopic shroud, the guard remains tightly secured when locked but allows the emergency button to be pressed instantly when an operator needs to cut power. This fail-safe layout bridges the gap between rigid machine security and immediate physical accessibility, giving operators total peace of mind during unexpected safety crises.
- Finished in an industry-standard, high-visibility safety yellow, this padlocking guard guarantees immediate visual identification even in poorly lit factory areas or dense control panels. Fully compliant with rigid ISO 13850 and IEC 60204-1 machine safety regulations, it ensures your facility effortlessly passes strict occupational health and safety inspections while actively keeping personnel protected.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Color
- Yellow, Yellow
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Certificate Agency
- ISO 13850, IEC 60204-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.005884347, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0049920239, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 0.4 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4, padlockable flap is black. This padlockable flap is designed as an accessory to cover and protect your pushbuttons from unauthorized operations. It is easily installed and attached to Harmony XB4 and XB5 pushbuttons with flush push units. Secure machine and system operation with padlock, only available to authorized operators. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 13
- Accessory / Separate Part Type
- guard
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Accessory Destinationemergency stop push-button, for standard head
Accessory / Separate Part Destinationemergency stop push-button, for standard head
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0342437687
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3520488534
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506038EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Materialmetal
Product Or Component Typepadlocking kit
Sale Per Indivisible Quantity1
Sustainable PackagingYes
Pep CodeENVPEP2506038EN
Pep Verification Date2023-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorylocking accessories
Accessory / Separate Part Designationpadlockable metal guard
Package Weight(Lbs)43.000 g
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- XB5BS8444, XB4BS9445, XB4BS8444, XB4BS8445, XB4BS84441, XB5BS9445, XB5BS84441, XB5BS8445, ZB5BS844, ZB4BS944, ZB4BS844, ZB5BS944
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2506038EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.397168993
Environmental DisclosureENVPEP2506038EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2506038EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- padlocking kit
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Additional Information
- telescopic guard
