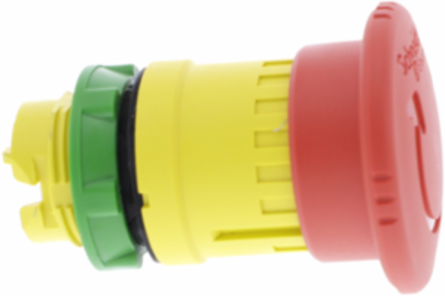

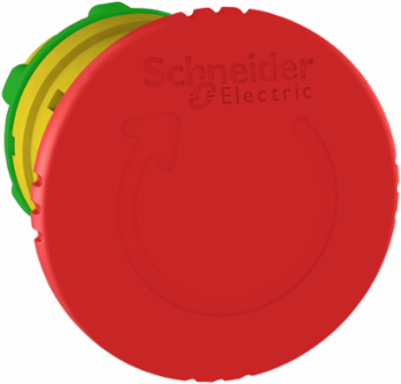

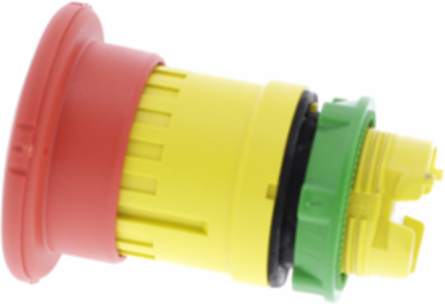

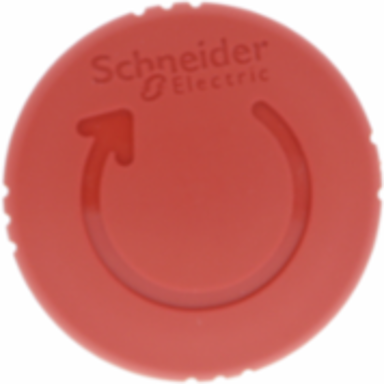

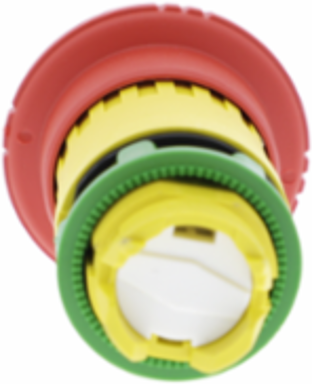

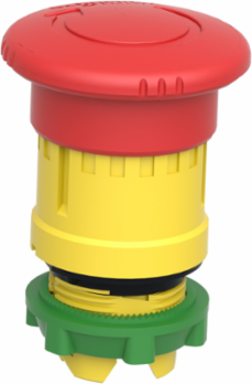

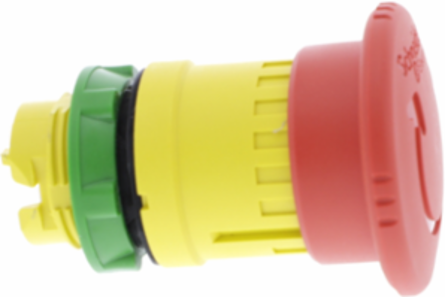

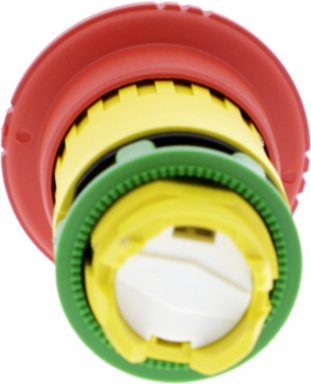

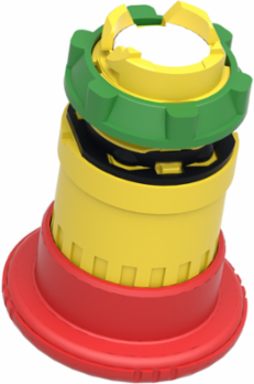

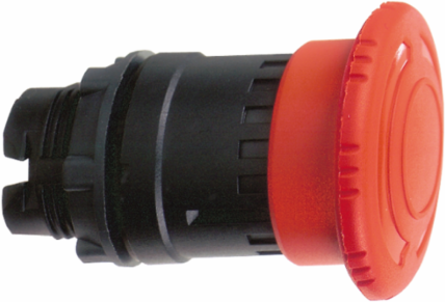

Schneider Electric ZB5AS844 Harmony XB5 Emergency Stop Button Head 40mm, IP66/IP67/IP69, Red
- MPN: ZB5AS844
- PPN: SCH-ZB5AS844
CAD
$77.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The Schneider Electric Harmony ZB5AS844 is a specialized 22mm Emergency Stop (E-Stop) mushroom head featuring a "Trigger Action" mechanism. This safety-critical design ensures that the contacts are only actuated when the button is fully depressed, preventing accidental stops while ensuring a positive, latching shut-down when required by an operator.
- This model features a "Turn-to-Release" reset function. Once the 40mm red mushroom head is pushed and latches into the "OFF" position, it must be rotated clockwise to reset the circuit. This deliberate manual action is a standard safety requirement in Canadian industrial settings to ensure that machinery cannot be restarted until the area is visually cleared and the button is manually released.
- Constructed from high-grade plastic (ZB5 series), this actuator is highly resistant to chemical corrosion and electrical interference. With IP66, IP67, IP69, and IP69K ratings, it is specifically designed to withstand high-pressure, high-temperature wash-downs, making it the ideal choice for food processing, pharmaceutical, and outdoor maritime applications.
- The 40mm diameter mushroom head provides a large, ergonomic target that can be struck quickly even with gloved hands or in high-stress situations. Its vibrant red cap against a standard yellow E-Stop legend plate (sold separately) ensures the button is immediately identifiable to personnel, meeting strict global and CSA safety visibility standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Czechia, France, Mexico, United States
Physical Attributes

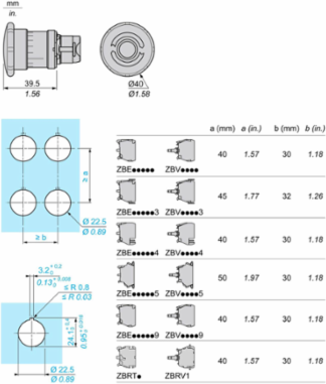

- Cad Overall Depth
- 57 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0
- Operator Profile
- red mushroom Ø 40 mm, unmarked, mushroom Ø 40 mm
- Operator Profile 1 Cap Operator Or Lens Color
- red
- Certificate Agency
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.06003579347481787, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2742562559391828
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308012EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 60 %
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Marking
- unmarked
- Mounting Diameter
- 22.5 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- head for emergency stop push-button
- Range Of Product
- Harmony XB5
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- No
- Type Of Operator
- trigger action and mechanical latching
- Pep Code
- "ENVPEP2308012EN"
- Pep Verification Date
- 2023-10-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 41.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC7 4 single front mountingC8 4 single and double front mountingC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting, C10 4 single and double front mounting
Station NameXALD 1 cut-out, XALK 1 cut-out
Operator Profile 1 Operator Profilemushroom Ø 40 mm
Carbon Footprint Of The Distribution Phase [A4]0.004446062717770035, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.011859613557174532
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content7 %
Compatibility CodeZB5
Group Of Productemergency stop turn to release
Main GroupE-stop
Mechanical Durability300000 cycles
Overvoltage Categoryclass II conforming to IEC 60536
Product Destinationemergency stop push-button
Protective TreatmentTH
Resetturn to release
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 emergency stop mushroom head modular pushbutton operates with a latched-turn-to-release mechanism. It has a plastic bezel and it is supplied with a red mushroom diameter 40 mm unmarked. It is easily installed into a standard 22mm diameter panel cut-out. Product meets the international standards such as IEC 60947-1 and IEC 60204 -1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC
Recyclability Potential In %21
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 60 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3505977256889452
- Environmental Disclosure
- "ENVPEP2308012EN"
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- "ENVPEP2308012EN"
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308012EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for emergency stop push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001038
ETIM 9EC001038
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
