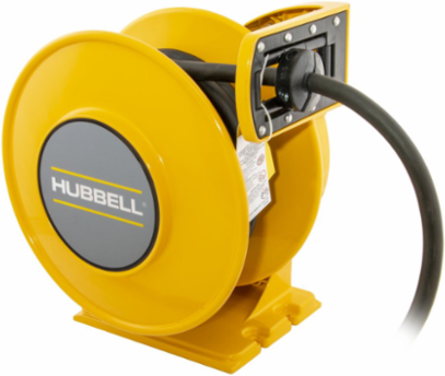

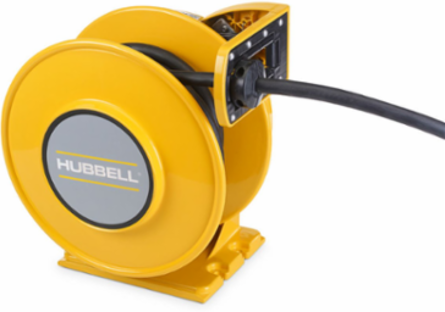

Hubbell Wiring Device-Kellems HBLW40103 Yellow Weatherproof Cord Reel, 40 Ft, #10/3 SOW, 30 A, 600 VAC
- MPN: HBLW40103
- UPC: 783585585765
- PPN: HBL-HBLW40103
- UNSPSC: 26121635
CAD
$2989.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Yellow Weatherproof Reel, UL Type 4, 40 Ft, #10/3 SOW, 30 A, 600 VAC
Features
- Durable, Corrosion Resistant Cast Aluminum Construction
- UL Type 4
- Multi-Position Guide Arm can be mounted in two different positions
- Positive Latch mechanism automatically maintains desired cord length
- Ratchet Lock can be disengaged in field for constant tension applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 30 A |
| Application | Industrial |
| Cable Type | #10/3 SOW |
| Voltage Rating | 600 VAC |
| Weight | 37.75 lb. |
| General Literature Asset 1 Display Text | Wiring Device Solutions for Strategic Manufacturing Facilities |
| General Literature Asset 3 Display Text | Pulp & Paper Solutions |
| Style | Leaded |
| Description - Invoice | WP REEL, UL TYPE 4, 40' SOW, 10/3, Y |
| Harmonization Code | 8544493080 |
| MSDS Flag | No |
| Series | inREACH® Series |
| BOX SIZE | 16.900x17.100x14.400 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585585765 |
| Case Weight | 37.750 lb. |
| Pallet Height | 33.800 in |
| Pallet Weight | 528.500 lb. |
| NAICS Code | 335931A107 |
| Cable Length | 40 Ft |
|---|---|
| Width | 14.600 in |
| Cable Active Length | 40 Ft |
| Type | Weatherproof Reel |
| Voltage Rating Description | 600 VAC |
| Engineering Drawing 1 Display Text | HBLW40103 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Cord Reels |
| Number Of Wires | 3-Wire |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 37.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Pallet - GTIN - Package | 70783585585764 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
