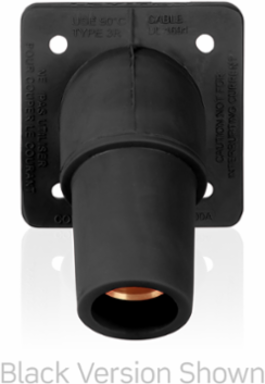

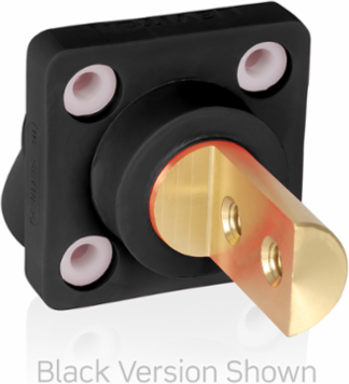

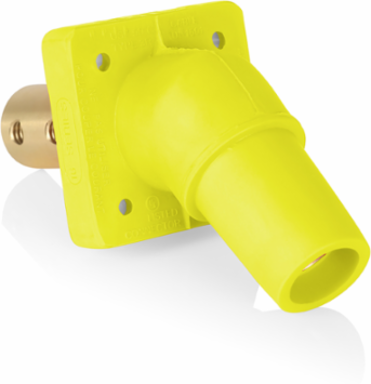

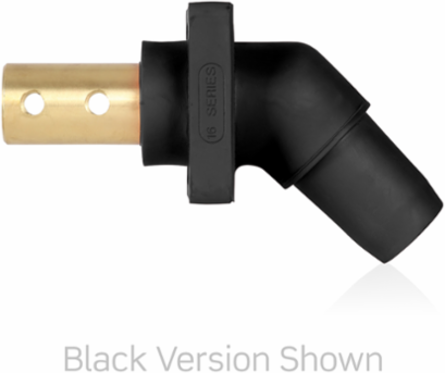

Leviton 16R36-Y 16 Series Female Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar
- MPN: 16R36-Y
- UPC: 078477026175
- PPN: LEV-16R36-Y
CAD
$93.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
16 Series Taper Nose Cam-Type Female Panel Mount Receptacle, 45-Degree, #2-4/0 AWG, Double Hole Bus Bar, 400 Amp Max, 600 VAC/DC, Self-Clinching Nuts, Blue
Features
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, data centers, power distribution, backup power, construction sites, disaster recovery and other temporary power applications"
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Contact
- Brass
InsulatorsSantoprene TPV
Mechanical Specifications
- Cable Size Range
- #2-4/0 AWG
- Gender
- Female
Connection TypeBus Bar-Double Hole
Termination TypeTaper-Nose
Product Features
- Color
- Yellow
Series16 Series
Warranty
- Warranty
- 2-Year Limited
Electrical Specifications
- Max. Amperage
- 400A
- Short Circuit Current Rating
- 35kA
Max. Voltage600 VAC/DC
Standards & Certifications
- CSA
- 1691
- UL
- 1691
NEMA RatingType 3R
