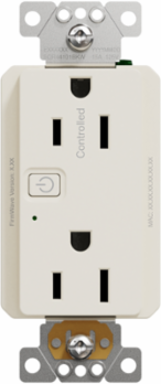

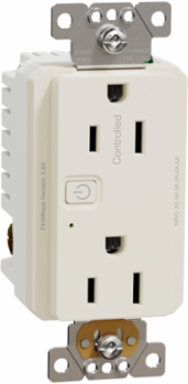

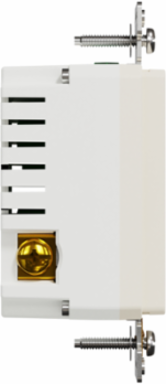

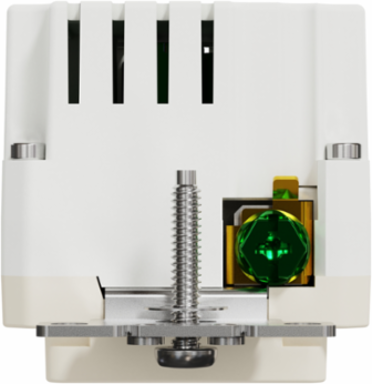

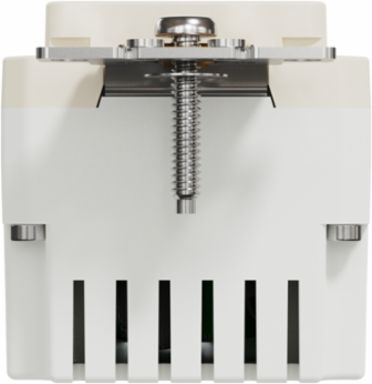

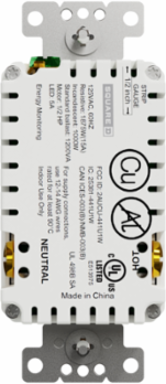

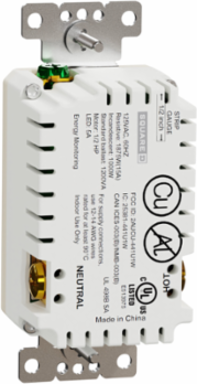

Schneider Electric SQR44102LAZ Z-Wave Energy Monitoring Socket-Outlet, 15 A, 120V, Tamper Resistant, Light Almond
- MPN: SQR44102LAZ
- UPC: 785901906391
- PPN: SCH-SQR44102LAZ
- UNSPSC: 39121308
CAD
$92.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Z-Wave Energy Monitoring Socket-Outlet is designed to enhance your energy management capabilities while ensuring safety and convenience. This tamper-resistant outlet supports a load of up to 15 amps and operates at 120 volts, making it suitable for various household appliances. Its light almond finish provides a subtle, modern touch that complements contemporary decor. With integrated Z-Wave technology, it allows for real-time energy monitoring, empowering you to track usage and make informed decisions for improved energy efficiency in your home.
Features
- Z-Wave Plus Duplex Receptacle Matt light almond
- Monitors Energy and Remote control
- Z-Wave certified to work with most hubs and existing home automation systems
- One outlet controllable; energy monitoring built-in both outlets
- S2 SmartStart connects to hub even before installation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
Complementary Attributes
| Ie Rated Operational Current Ac | 15 A |
|---|
| Ue Rated Operational Voltage | 125 V |
|---|
Important Information Attributes
| X Main Color Tint | light almond |
|---|---|
| Local Publishable Date | 2026-08-19 |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Contractor |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Modules | 1 |
| Outlet Standard | NEMA |
| Product Or Component Type | socket-outlet |
| Range | Square D X Series |
| Socket Additional Information | tamper resistant |
| Surface Finish | Matte |
| Main Color Tint | light almond |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Data Status | Publishable |
|---|---|
| Pre Comm Date | 2021-04-05 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Persona Type Ids | LC |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Device Application | power supply |
| Material | plastic: strap |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Outlet Poles Configuration | 2P + E |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Socket Number | 1 |
| Sustainable Packaging | No |
| Connections Terminals | phase and neutral screw terminal |
| Customs Code | 8536698000 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | socket-outlet |
|---|
ETIM
| ETIM 8 | EC000125 |
|---|---|
| ETIM 10 | EC000125 |
| ETIM 9 | EC000125 |
|---|
Overview Attributes
| Device Presentation | complete device |
|---|
