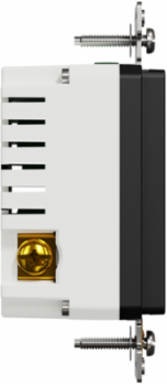

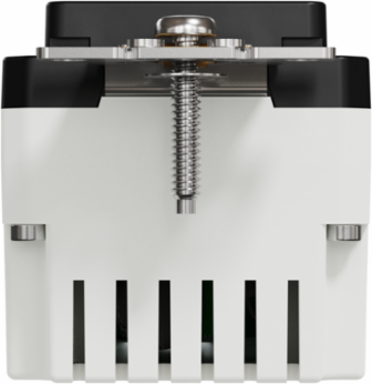

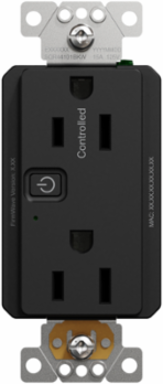

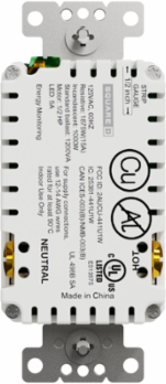

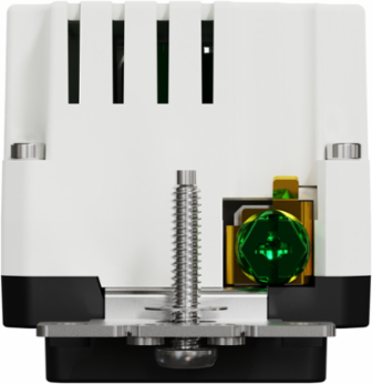

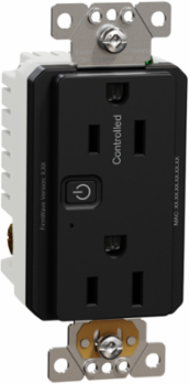

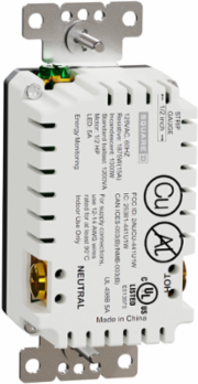

Schneider Electric SQR44102BKZ Z wave Energy Monitoring Socket-outlet, X Series, 15 A, 120V, tamper resistant, black, matt finish
Schneider Electric SQR44102BKZ Z wave Energy Monitoring Socket-outlet, X Series, 15 A, 120V, tamper resistant, black, matt finish
- MPN: SQR44102BKZ
- UPC: 785901907428
- PPN: SCH-SQR44102BKZ
- UNSPSC: 39121308
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$108.31/ EA
Description
Z wave Energy Monitoring Socket-outlet, X Series, 15 A, 120V, tamper resistant, black, matt finish
Features
- Duplex receptacle matt black.
- Energy monitoring and remote control.
- Z-Wave certified to work with most hubs and existing home automation systems.
- One outlet controllable, energy monitoring built-in both outlets.
- S2 SmartStart connects to hub even before installation.
Specifications
Physical Attributes
- Color
- Black
Main Color Tintblack
Important Information Attributes
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Persona Type Names
- Contractor
- Function Option
- Standard
- Market Segmentation
- Residential
- H And D Subrange
- X SERIES
- H And D Enrichment Function
- SOCKET OUTLET
- H And D Enrichment Class 2
- Others
- H And D Enrichment Class 4
- Socket outlet single
- Device Application
- power supply
- Main Color Tint
- black
- Mounting Mode
- by screws
- Network Type
- AC
- Outlet Standard
- NEMA
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 1 piece
- Returnability
- Yes
- Sustainable Packaging
- No
- Ue Rated Operational Voltage2
- 125 V
- Medium Desc
- Z wave Energy Monitoring Socket-outlet, X Series, 15 A, 120V, tamper resistant, black, matt finish
- Product Kit Identifier
- N
- Socket Additional Information
- tamper resistant
- Connections Terminals3
- phase and neutral screw terminal
Local Publishable Date2025-11-18
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Persona Type IdsLC
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
H And D DomainEnergy
H And D Enrichment Assignmentyes
H And D Enrichment Class 1D2
H And D Enrichment Class 3Socket outlets
Aesthetic NameX Series
Energy Efficiency OptimizedFalse
Materialplastic: strap
Network Frequency60 Hz
Number Of Gangs1 gang
Package Weight Lbs175 g
Product Or Component Typesocket-outlet
RangeSquare D X Series
Surface FinishMatte
Ie Rated Operational Current Ac215 A
Connections Terminalsphase and neutral screw terminal
Stocking FlagY
Outlet Poles Configuration2P + E
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Compliant
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- socket-outlet
Overview Attributes
- Device Presentation
- complete device
