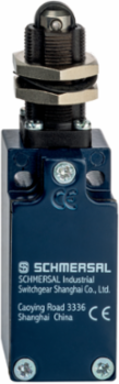

Schmersal 101167216 Safe Switching Position Switch with Metal Enclosure, 30 mm Width, IP65 Rating
- MPN: 101167216
- PPN: SCM-101167216
CAD
$157.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Safe Switching Position Switch with Metal Enclosure, 30 mm Width, IP65 Rating
Features
- Snap action with constant contact pressure up to switching point
- 1 Cable entry M 20 x 1.5
- Metal enclosure
- Wide range of alternative actuators
- Good resistance to oil and petroleum spirit

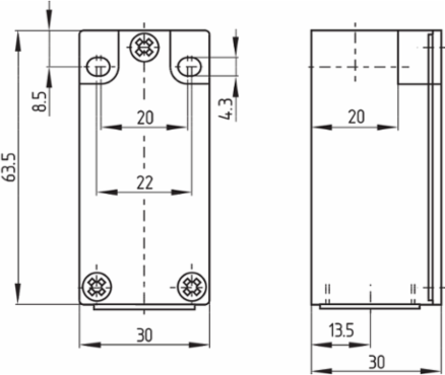

- 30 mm x 63,5 mm x 30 mm
- Actuator heads can be repositioned by 4 x 90°
- Mounting details to EN 50047
Documentation & Downloads
Specifications
Safety appraisal
- Standards
- EN ISO 13849-1
Mission Time20 Year(s)
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 230 VAC
- Utilisation category DC-13
- 24 VDC
- Switching element
- NO contact, NC contact
- Bounce duration, maximum
- 3 ms
- Switchover time, minimum
- 5.5 ms
Required rated short-circuit current to EN 60947-5-11,000 A
Utilisation category AC-154 A
Utilisation category DC-131 A
Switching principleSnap switch element
Switching frequency5,000 /h
Mechanical data - Dimensions
- Length of sensor
- 30 mm
- Height of sensor
- 103.5 mm
Width of sensor30 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 20,000,000 Operations
General data - Features
- Safety functions
- Yes
- Number of safety contacts
- 1
Number of auxiliary contacts1
General data
- Standards
- IEC 60947-5-1 | EN ISO 13849-1 | BG-GS-ET-15
- Enclosure material
- Zinc die-cast, paint finish
- Gross weight
- 190 g
Housing construction formNorm construction design
Material of the contacts, electricalSilver
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +80 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Mechanical data

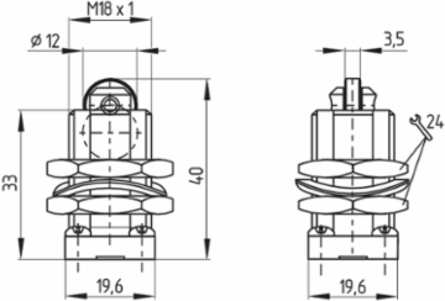

- Actuating element
- Roller plunger
- Actuating force, minimum
- 9 N
- Actuating speed, minimum
- 20 mm/min
- Note (Actuating speed)
- Actuating speed with actuating angle 30° to switch axis
Mechanical life, minimum20,000,000 Operations
Positive break force, minimum19 N
Actuating speed, maximum1 m/s
Approval - Standards
- Certificates
- cULus | cCSAus | CCC | EAC
