Schmersal 101057492 Heavy-Duty Position Switch with Metal Enclosure, 149 mm Length, IP65 Rating
- MPN: 101057492
- PPN: SCM-101057492
CAD
$984.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-Duty Position Switch with Metal Enclosure, 149 mm Length, IP65 Rating
Features
- Metal enclosure

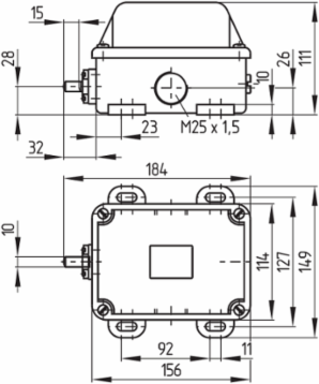

- 184 mm x 111 mm x 149 mm (basic component)
- 2 cable entries M 25 x 1.5
- 3 or 4 Contacts
- Actuator heads can be repositioned by 4 x 90°
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 25 A
- Utilisation category AC-15
- 25 A
- Note (Switching element)
- with double break
- Switching frequency
- 1,000 /h
Utilisation category AC-15400 VAC

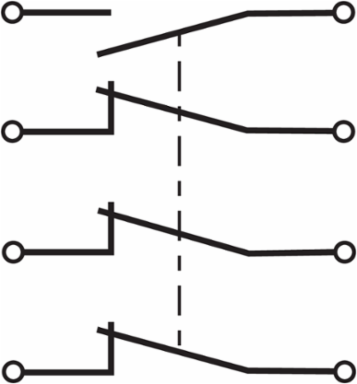

Switching elementNO contact / NC contact
Switching principleCreep circuit element
Mechanical data - Dimensions
- Length of sensor
- 149 mm
- Width of Castor
- 9 mm
Height of sensor90 mm
Diameter of Castor36 mm
Ambient conditions - Insulation value
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety appraisal - Safety outputs
- B10d Normally-closed contact (NC)
- 2,000,000 Operations
General data - Features
- Number of openers
- 3
Number of shutters1
General data
- Standards
- EN 60947-5-1
- Slide form
- Castor
- Enclosure coating material
- painted
- Roller material
- Plastic
Active principlemechanical
Enclosure materialGrey cast iron, galvanised
Material of the contacts, electricalSilver
Gross weight3,615 g
Ambient conditions
- Degree of protection
- IP65 to EN 60529
- Ambient temperature, maximum
- +90 °C
Ambient temperature, minimum-30 °C
Mechanical data - Connection technique
- Terminal Connector
- Screw terminals M20 x 1.5
- Cable section, maximum
- 4 mm²
- Wire cross-section
- 11 AWG
Cable section, minimum1.5 mm²
Note (Cable section)All indications about the cable section are including the conductor ferrules.
Mechanical data

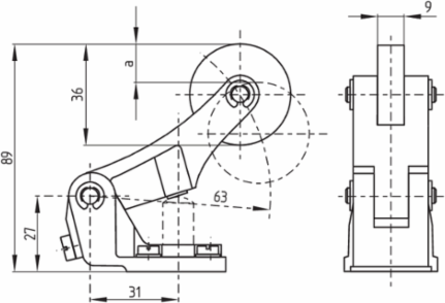

- Actuating element
- Offset roller lever
- Actuating angle, from left of switch axis
- 30 °
- Contact opening
- 2 x 4 mm
- Actuating speed, maximum
- 1 m/s
Mechanical life, minimum1,000,000 Operations
Actuating angle, from right of switch axis45 °
Actuating speed, minimum600 mm/min
Note (Actuating speed)Actuating speed with vertical actuating angle to switch axis
Approval - Standards
- Certificates
- cULus | CCC | EAC
