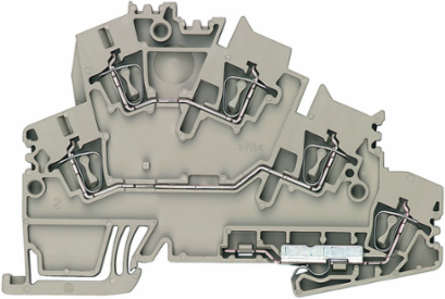

Weidmuller 1805940000 ZDKPE 2.5-2

MPN: 1805940000
PPN: WDM-1805940000

$7.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Feed-through terminal, Double-tier terminal, Tension-clamp connection, 2.5 mm², 800 V, 24 A, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, cURus, EAC, GERMLLOYD
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	89.5 mm
Depth	59.5 mm
Depth including DIN rail	60.5 mm

Width (inches)	0.201 inch
Height (inches)	3.524 inch
Depth (inches)	2.343 inch
Net weight	14.32 g

Csa Rating Data

Certificate No. (CSA)	200039-1236167
Current size D (CSA)	10 A
Voltage size D (CSA)	300 V
Wire cross section min. (CSA)	30 AWG

Current size B (CSA)	25 A
Voltage size B (CSA)	300 V
Wire cross section max. (CSA)	12 AWG

Additional Technical Data

Explosion-tested version	No
Open sides	right

Number of similar terminals	1
Type of mounting	Snap-on

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000897
eClass 9.0	27-14-11-20
eClass 10.0	27-14-11-20

ETIM 7.0	EC000897
eClass 9.1	27-14-11-20
UNSPSC	30-21-18-11

System Specifications

Version	Tension-clamp connection, With PE connection, for plug-in cross-connector, One end without connector
Number of levels	2
PE connection	Yes

End cover plate required	Yes
Number of clamping points per level	2
Rail	TS 35

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	2.5 mm²
Rated voltage to adjoining terminal	800 V
Current at maximum wires	24 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV

Rated voltage	800 V
Rated current	24 A
Standards	IEC 60947-7-1 (-7-2)
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.05 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, min.	AWG 30
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Clamping range, max.	4 mm²
Connection direction	Inclined / angled
Number of connections	4
Type of connection	Tension-clamp connection
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Ul Rating Data

Certificate No. (cURus)	E60693
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Voltage size C (cURus)	600 V
