Weidmuller 1808200000 ZDUA 2.5-2N

MPN: 1808200000
PPN: WDM-1808200000

$1.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

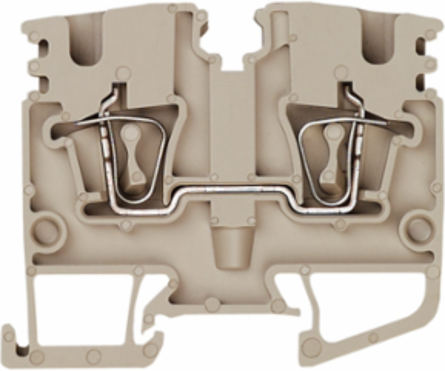

Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, cURus, EAC
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	42.5 mm
Depth	35 mm
Depth including DIN rail	35.5 mm

Width (inches)	0.201 inch
Height (inches)	1.673 inch
Depth (inches)	1.378 inch
Net weight	5.09 g

Dimensions

TS 15 offset	22.5 mm

Csa Rating Data

Certificate No. (CSA)	200039-1152892
Voltage size C (CSA)	600 V
Wire cross section min. (CSA)	26 AWG

Current size C (CSA)	20 A
Wire cross section max. (CSA)	12 AWG

Additional Technical Data

Explosion-tested version	Yes
Type of mounting	Snap-on

Open sides	right

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	dark beige

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000897
eClass 9.0	27-14-11-20
eClass 10.0	27-14-11-20

ETIM 7.0	EC000897
eClass 9.1	27-14-11-20
UNSPSC	30-21-18-11

System Specifications

Version	Tension-clamp connection, for plug-in cross-connector, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 15
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Rating Data

Rated cross-section	2.5 mm²
Rated current	24 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Rated voltage	800 V
Current at maximum wires	30 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	8 kV

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	top
Number of connections	2
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²

Ul Rating Data

Certificate No. (cURus)	E60693
Conductor size Factory wiring min. (cURus)	26 AWG
Conductor size Field wiring min. (cURus)	26 AWG
Voltage size C (cURus)	600 V
