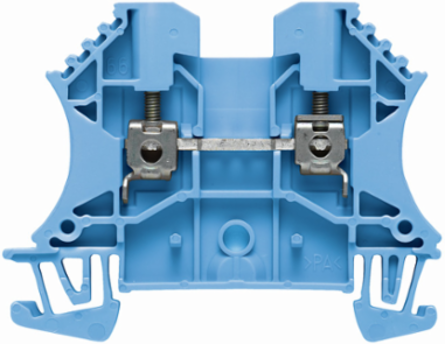

Weidmuller 1020080000 WDU 2.5 BL
- MPN: 1020080000
- PPN: WDM-1020080000
CAD
$2.33
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Feed-through terminal, Screw connection, 2.5 mm², 800 V, 24 A, blue
Documentation & Downloads
Specifications
Additional
| Rated voltage | 800 V |
|---|---|
| Current size C (CSA) | 20 A |
| Current size B (UR) | 25 A |
| Current (IECEX) | 24 A |
| Continuous operating temperature range | -60 C to 130 C |
| Height | 60 mm |
| Net weight | 7.43 g |
| Clamping range | 0.05 - 4 mm |
| Tightening torque | 0.4 - 0.8 Nm |
| Wire cross section range | 0.5 - 4 mm (solid and stranded) |
| Blade size | 0.6 x 3.5 mm |
| Material | Wemid |
| Approvals | CE, CSA, CSAEX, CURUSEX, DEMKOATEX, DNV GL, EAC, EXIKONF, IECEXULD, INMETRO, KEMAKEUR, LLOYDSREG, MARITREG, NEMKO, UR, UL Listed, CSA Certified, ATEX, IECEx, RoHS Compliant |
| Standards | IEC 60947-7-1 |
| Certificate No. (CSA) | 200039-1057876 |
| Certificate No. (UR) | E60693 |
| Rated impulse withstand voltage | 8 kV |
| eClass 9.1 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
| UNSPSC | 30-21-18-11 |
| Open sides | right |
| Number of potentials | 1 |
| Number of levels | 1 |
| Levels cross-connected internally | No |
| PE function | No |
| Version | Screw connection, for plug-in cross-connector, for screwable cross-connection, One end without connector |
| Type of mounting | Snap-on |
| Rated current | 24 A |
|---|---|
| Current size C (UR) | 25 A |
| Current (ATEX) | 24 A |
| Storage temperature range | -25 C to 55 C |
| Width | 5.1 mm |
| Depth | 46.5 mm |
| Rated cross-section | 2.5 mm |
| Stripping length | 10 mm |
| Number of connections | 2 |
| Wire connection AWG range | AWG 30 min, AWG 12 max |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Pollution severity | 3 |
| Safety notice | Safety Information |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| eClass 10.0 | 27-14-11-20 |
| eClass 9.0 | 27-14-11-20 |
| ETIM 6.0 | EC000897 |
| Connection direction | on side |
| Explosion-tested version | Yes |
| Number of potentials per tier | 1 |
| Number of clamping points per level | 2 |
| PEN function | No |
| N-function | Yes |
| Type of connection | Screw connection |
| Clamping screw | M 2.5 |
