Weidmuller 1720950000 ZPEA 2.5-2

MPN: 1720950000
PPN: WDM-1720950000

$3.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

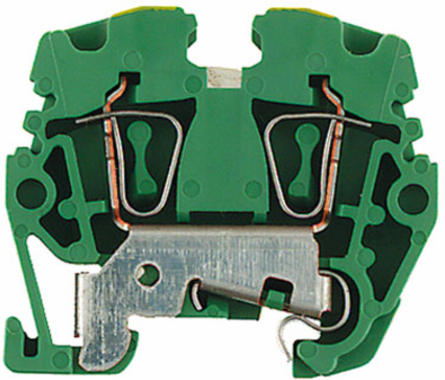

Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, CURUSEX, DEMKOATEX, EAC, IECEXULD, INMETRO, KEMAKEUR, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	35 mm
Depth	30 mm
Depth including DIN rail	30.5 mm

Width (inches)	0.201 inch
Height (inches)	1.378 inch
Depth (inches)	1.181 inch
Net weight	4.68 g

Dimensions

TS 15 offset	17.5 mm
TS 35 offset	34.5 mm

TS 32 offset	34.5 mm

Csa Rating Data

Certificate No. (CSA)	200039-1152892
Wire cross section min. (CSA)	26 AWG

Wire cross section max. (CSA)	12 AWG

Additional Technical Data

Explosion-tested version	Yes
Open sides	right

Number of similar terminals	1
Type of mounting	Snap-on

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	Green/yellow

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000901
eClass 9.0	27-14-11-41
eClass 10.0	27-14-11-41

ETIM 7.0	EC000901
eClass 9.1	27-14-11-41
UNSPSC	30-21-18-11

System Specifications

Version	Tension-clamp connection, With PE connection, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 15
PE function	Yes

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Pe Rating Data

Rated short-time current	300 A (2.5 mm²)

PEN function	No

Rating Data

Rated cross-section	2.5 mm²
Standards	IEC 60947-7-2
Power loss in accordance with IEC 60947-7-x	0.77 W
Rated impulse withstand voltage to adjacent terminal	6 kV

Rated voltage to adjoining terminal	500 V
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV
Pollution severity	3

Rating Data Iecex/Atex

Certificate No. (ATEX)	DEMKO16ATEX1808U
Wire cross section max. (ATEX)	4 mm²
Operating temperature range	For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Ex 2014/34/EU label	II 2 G D

Certificate No. (IECEX)	IECEXULD16.0036U
Wire cross section max. (IECEX)	4 mm²
Marking EN 60079-7	Ex eb II C Gb

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	on side
Number of connections	2
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
