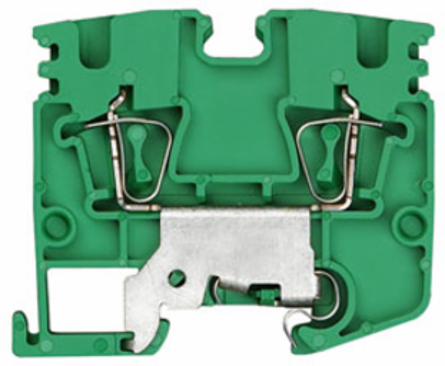

Weidmuller 1808210000 ZPEA 2.5-2N
- MPN: 1808210000
- PPN: WDM-1808210000
CAD
$4.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, green
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CSA, cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 42.5 mm |
| Depth | 35 mm |
| Depth including DIN rail | 35.5 mm |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 1.673 inch |
| Depth (inches) | 1.378 inch |
| Net weight | 6.13 g |
Dimensions
| TS 15 offset | 22.5 mm |
|---|---|
| TS 35 offset | 34.5 mm |
| TS 32 offset | 34.5 mm |
|---|
Csa Rating Data
| Certificate No. (CSA) | 200039-1152892 |
|---|---|
| Wire cross section min. (CSA) | 26 AWG |
| Wire cross section max. (CSA) | 12 AWG |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Snap-on |
| Open sides | right |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | Green/yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000901 |
|---|---|
| eClass 9.0 | 27-14-11-41 |
| eClass 10.0 | 27-14-11-41 |
| ETIM 7.0 | EC000901 |
|---|---|
| eClass 9.1 | 27-14-11-41 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Tension-clamp connection, With PE connection, One end without connector |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 15 |
| PE function | Yes |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Pe Rating Data
| Rated short-time current | 300 A (2.5 mm²) |
|---|
| PEN function | No |
|---|
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
| Rated voltage to adjoining terminal | 800 V |
|---|---|
| Standards | IEC 60947-7-2 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
Conductors For Clamping (Rated Connection)
| Blade size | 0.6 x 3.5 mm |
|---|---|
| Clamping range, min. | 0.13 mm² |
| Gauge to IEC 60947-1 | A2 |
| Stripping length | 10 mm |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Clamping range, max. | 4 mm² |
|---|---|
| Connection direction | on side |
| Number of connections | 2 |
| Type of connection | Tension-clamp connection |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 26 AWG |
| Conductor size Field wiring min. (cURus) | 26 AWG |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
|---|---|
| Conductor size Field wiring max. (cURus) | 12 AWG |
