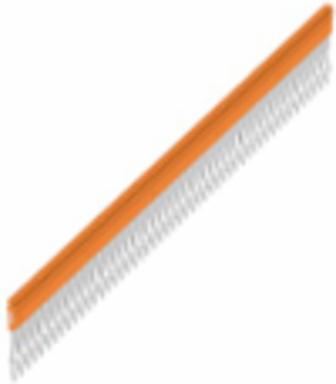

Weidmuller 1528130000 ZQV 4N/50
- MPN: 1528130000
- PPN: WDM-1528130000
CAD
$43.33
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ZQV 4N/50
Documentation & Downloads
Specifications
Approvals
| Approvals | ABS, BURVER, DNV GL, EAC, LLOYDSREG, RINA |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 303.7 mm |
|---|---|
| Height | 2.8 mm |
| Depth | 27.95 mm |
| Net weight | 42.8 g |
| Width (inches) | 11.957 inch |
|---|---|
| Height (inches) | 0.11 inch |
| Depth (inches) | 1.1 inch |
Dimensions
| Pitch in mm (P) | 6.1 mm |
|---|
Additional Technical Data
| Explosion-tested version | No |
|---|
| Type of fixing | Plugged |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | orange |
|---|
Classifications
| ETIM 6.0 | EC000489 |
|---|---|
| eClass 9.0 | 27-14-11-40 |
| eClass 10.0 | 27-14-11-40 |
| ETIM 7.0 | EC000489 |
|---|---|
| eClass 9.1 | 27-14-11-40 |
Product Information
| Product information | Attention: not finger-safe; not suitable for ATEX use |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated current | 32 A |
|---|
